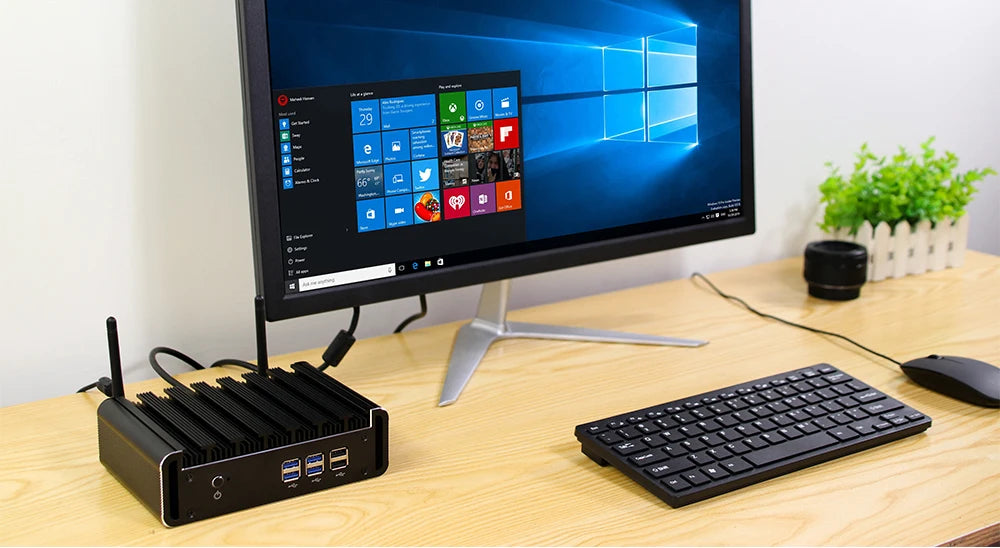

XCY X31Y Fanless Mini PC Intel Core Processor i7 5500U i5 5200U i3 5005U WiFi Gigabit Ethernet Windows Linux Thin Client HTPC
$390.23
SPECIFICATIONS
Audio Ports: 3.5mm jack, Realtek ALC662/892
Brand Name: XCY
Certification: CE,FCC,RoHS
Dimension: 180x 128x 55mm
Display: 1x HDMI, 1x VGA
Graphics Card Type: Integrated Card
Hard Drive Capacity: 512GB
Hard Drive Type: mSATA SSD ( support 2.5inch HDD)
Hign-concerned Chemical: None
LAN: Realtek 8111H Gigabit Ethernet
Memory Capacity: 8GB
Memory Types: DDR3L 1333/1600MHz
Model Number: XCY-X31Y-8USB
OS Support: Windows 10, Windows 8, Windows 7, Linux
Origin: Mainland China
Power Adapter: DC12V 5A
Processor Brand: Intel
Processor Main Frequency: Based on CPU
Processor Model: i3-4005U, i3-5005U, i5-4200U, i5-5200U, i7-5500U, i7-4500U
Type: Mini Desktop,Mini PC

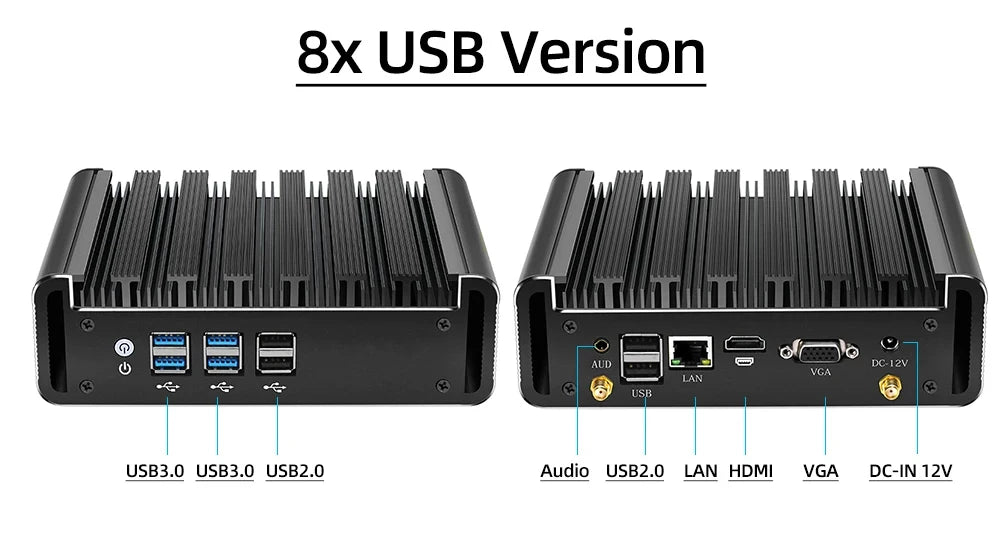

USB Ports: 4x USB3.0, 4x USB2.0
Use: Multimedia
WiFi: 300Mbps

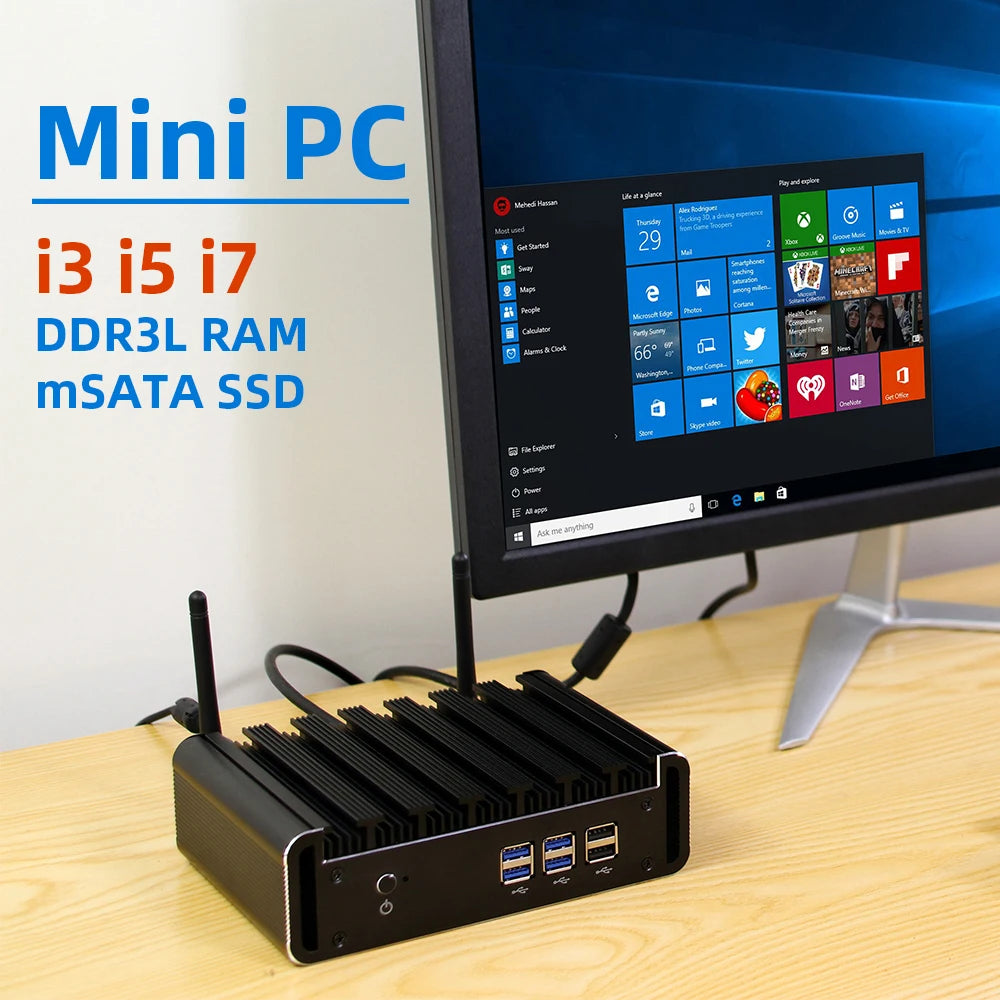

XCY X31Y Series Mini PC with Intel Core i3 i5 i7 Processors, DDR3L memory, mSATA SSD, 300Mbps WiFi, HDMI VGA Video Output, 8x USB Ports, Support Windows 10/Linux, HTPC/Office PC
Processors |
Intel Core i3-4005U, 2 cores 4 threads, 3M cache, 1.70GHz Intel Core i3-5005U, 2 cores 4 threads, 3M cache, 2.00GHz Intel Core i5-4200U, 2 cores 4 threads, 3M cache, 1.60GHz, up to 2.60GHz Intel Core i5-5200U, 2 cores 4 threads, 3M cache, 2.20GHz, up to 2.70GHz Intel Core i7-4500U, 2 cores 4 threads, 4M cache, 1.80GHz, up to 3.0GHz Intel Core i7-5500U, 2 cores 4 threads, 4M cache, 2.40GHz, up to 3.00GHz |
||
Memory |

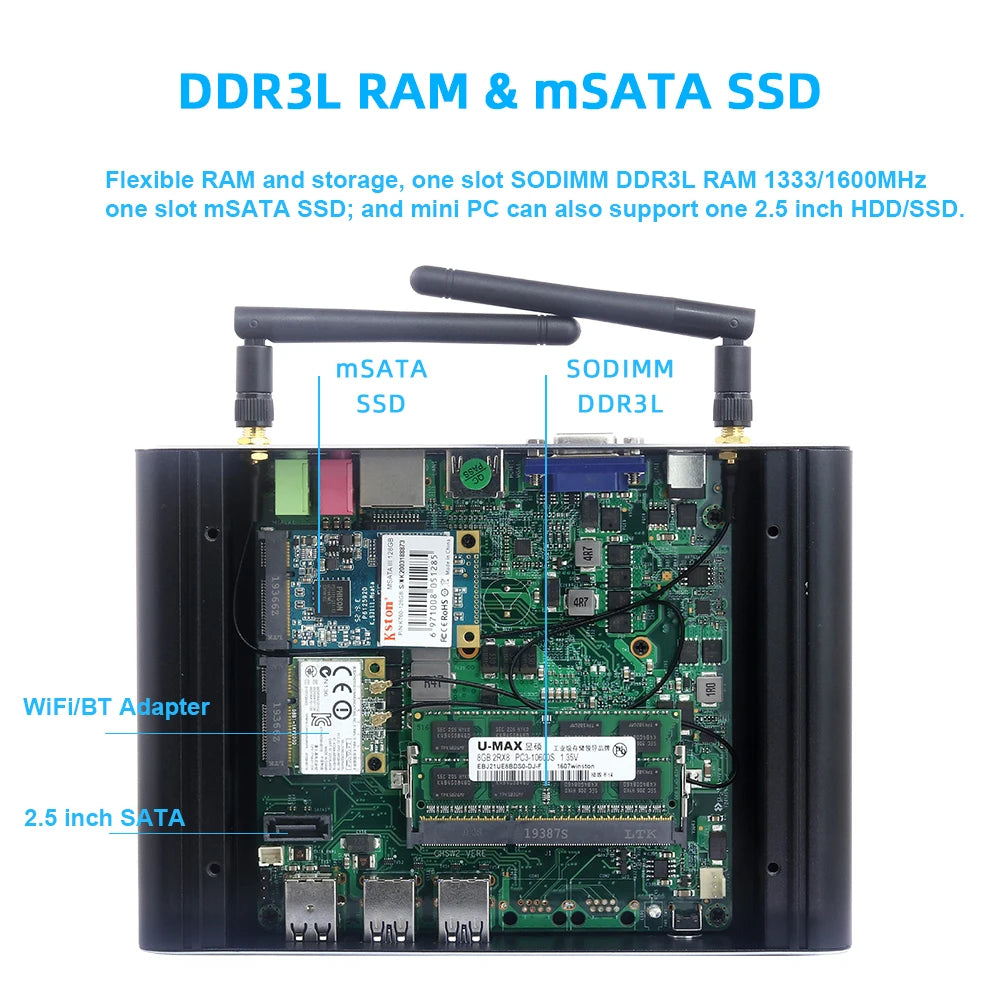

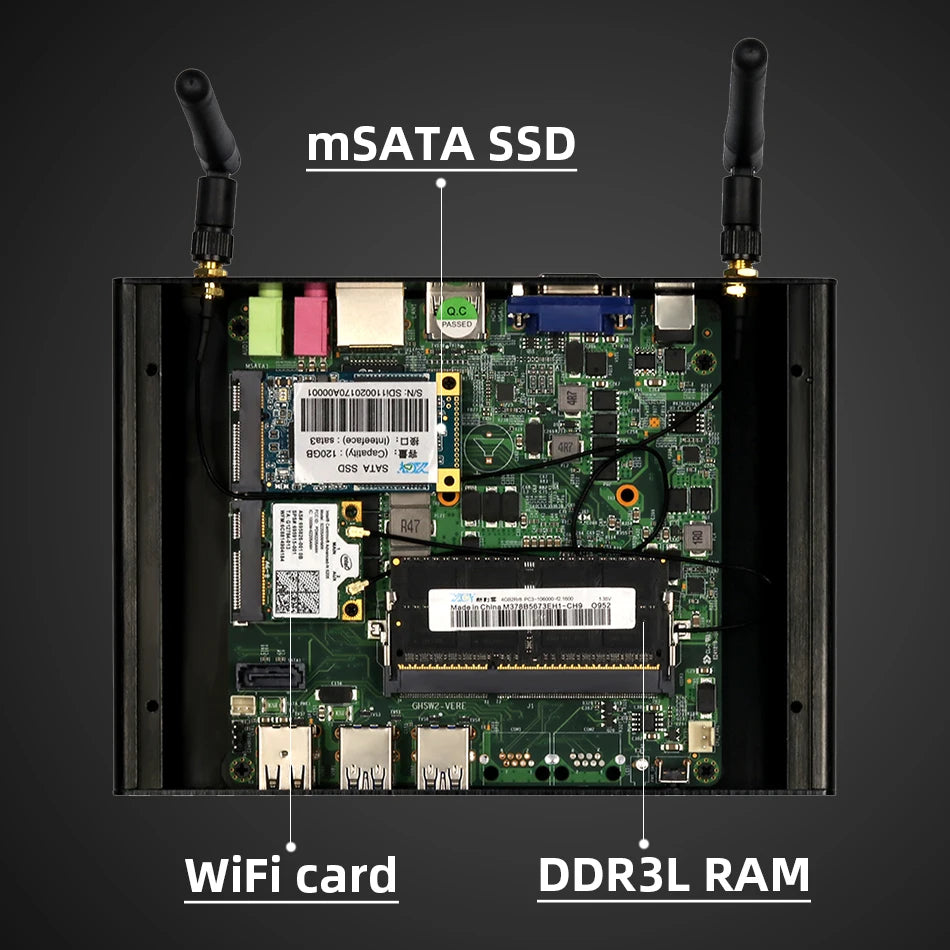

1x SODIMM DDR3L 1333/1600MHz i3-5005U i5-5200U/ i7-5500U max support 1x 16GB RAM, others CPU max support 1x 8GB RAM |
||
Storage |
Support 1x mSATA SSD ( we pre-install this type hard drive in mini PC ) Support 1x 2.5 inch HDD |
||
Graphics |
Integrated graphics
|
||
Network Interfaces |
GbE RJ45 Realtek 8111H, support PXE/WOL |
||
Expansion |
1x Mini PCI-E for WiFi/Bluetooth module ( half height size ) |
||
OS Support |
Windows 7/8.1/10, Linux, Ubuntu |
||
USB Ports |
4x USB3.0, 4x USB2.0 |
||
Display Port |

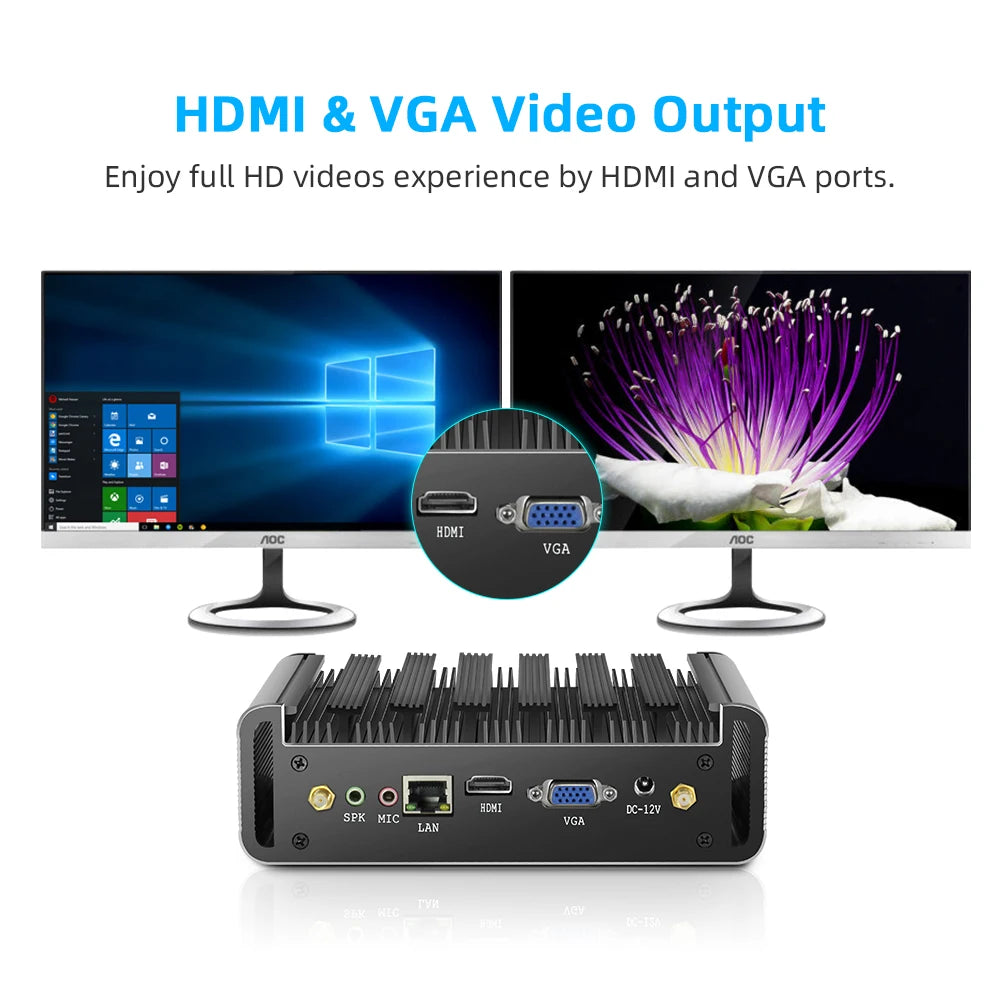

1x VGA, 1x HDMI |
||
Features |
Support WOL,automatically power on when power restored after a sudden power loss |
||
Audio Ports |
1x combo jack 3.5mm audio jack ALC662/892 |
||
Construction |
Fanless passive cooling |
||
Case |
Aluminum Case |
||
Dimension |
185x128x55mm |
||
Netweight |
0.95Kg |
||
Operating Temperature |
-20℃ to +60℃ |
||
RH |
5%~90% @30℃，Non-condensing |
||
Power Adapter |
Input AC100-240V, Output DC12V-5A |
||
Package List |

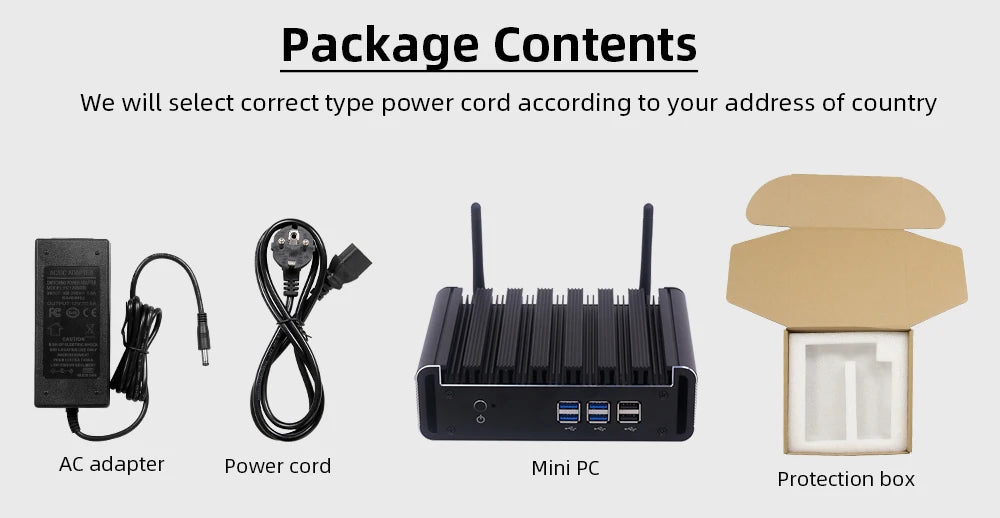

1x Mini PC 1x AC Adapter 1x Power cord ( EU AU US UK type plug shipped according to buyer’s address ) 1x SATA data cable 1x SATA power cable 1x User manual |
NOTE:
1. Buy No RAM No SSD option, mini PC comes without WiFi and antennas pre-installed;
2. Buy mini PC with RAM and SSD option, mini PC comes with WiFi and antennas pre-installed;
3. Mini PC comes without 3G/4G LTE module pre-installed, please contact us if you need
NOTE:
1. Buy No RAM No SSD option, mini PC comes without WiFi and antennas pre-installed;
2. Buy mini PC with RAM and SSD option, mini PC comes with WiFi and antennas pre-installed;
3. Mini PC comes without 3G/4G LTE module pre-installed, please contact us if you need
