$627.53

Color 4G RAM 128G SSD WiFi NO RAM NO SSD NoWiFi 8G RAM 256G SSD WiFi 8G RAM 128G SSD WiFi 8G RAM 512G SSD WiFi

Bundle Intel Core i5-3317U intel Celeron 1037U

SPECIFICATIONS

Audio Output: 1x SPK, 1x MIC, Realtek ALC662 chip

Brand Name: XCY

COM Ports: 4x COM DB9 RS232

Case Materials: Aluminum Alloy

Certification: CE,FCC,RoHS

Cooling: Fanless Passive Cooling

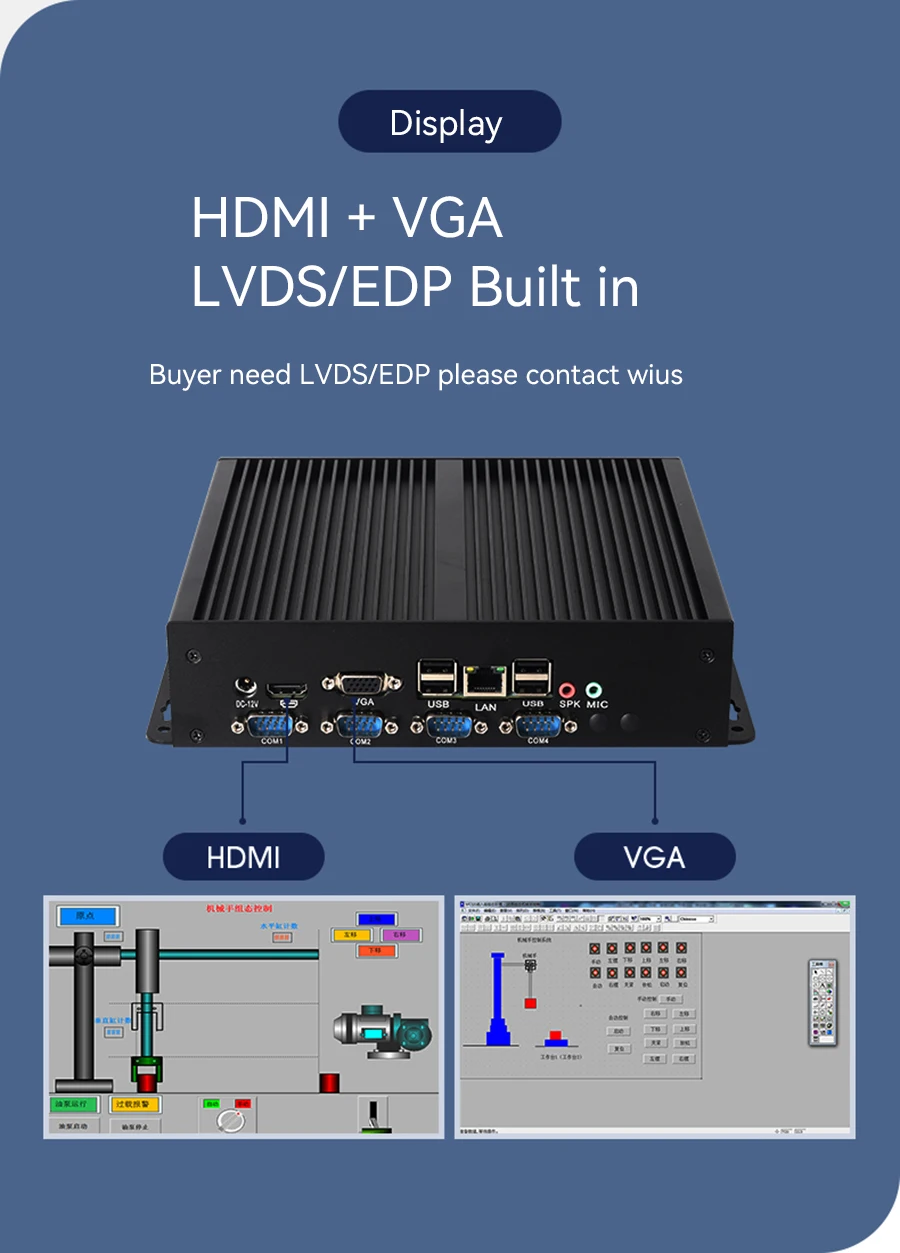

Display Port: 1x HDMI1.4, 1x VGA

Ethernet: Realtek 8111F Gigabit Ethernet, support PXE/WOL

Expansion: 1x half size mini PCIe slot for WiFi/bluetooth

Graphics Card Type: Integrated Card

Hard Drive Capacity: 128GB

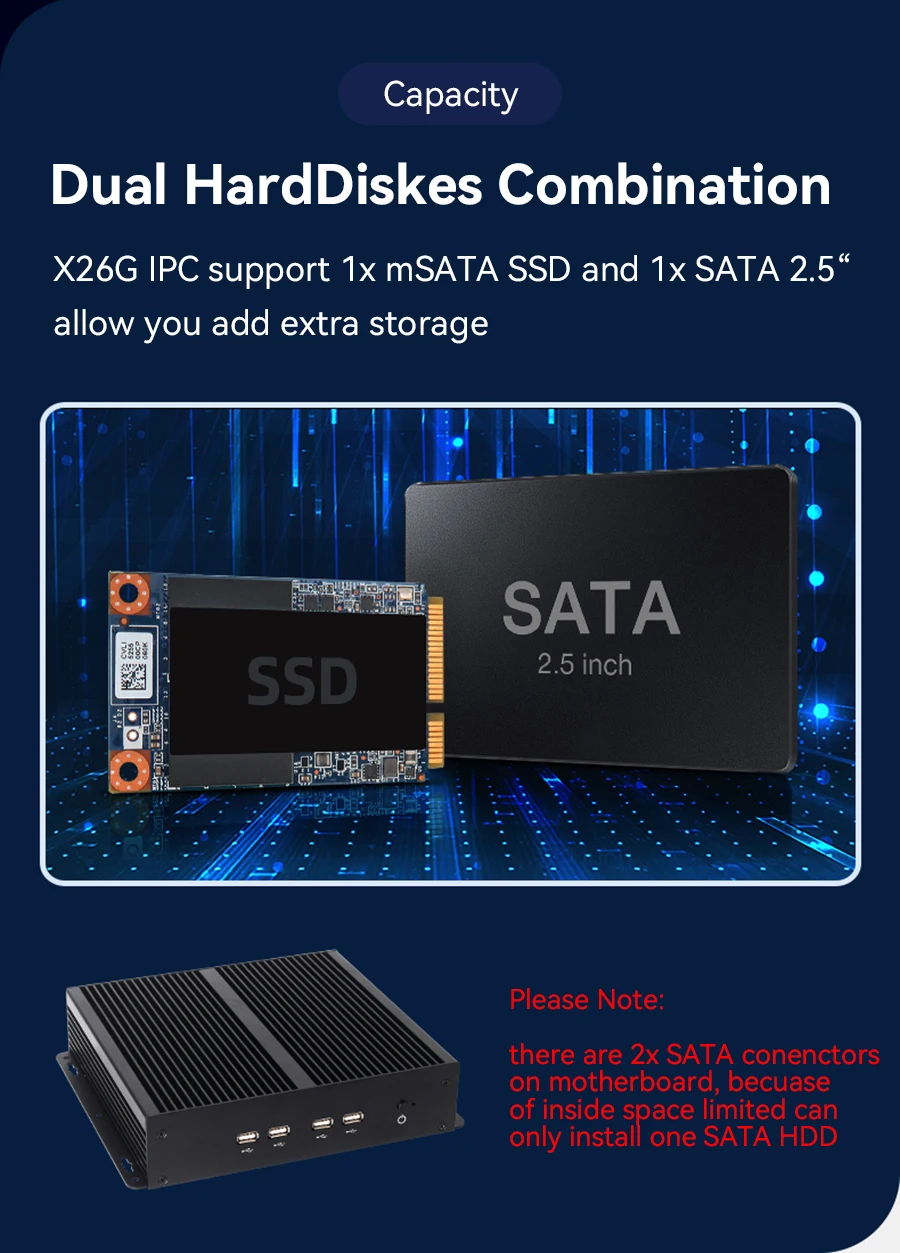

Hard Driver Support: 1x MSATA SSD, 1x SATA HDD/SSD 2.5 inch

Hign-concerned Chemical: None

Max Memory Support: 8GB

Memory Capacity: ≥ 4GB

Memory Slot: X1

Memory Types: SODIMM DDR3L 1333/1600MHz

Model Number: XCY-X26G

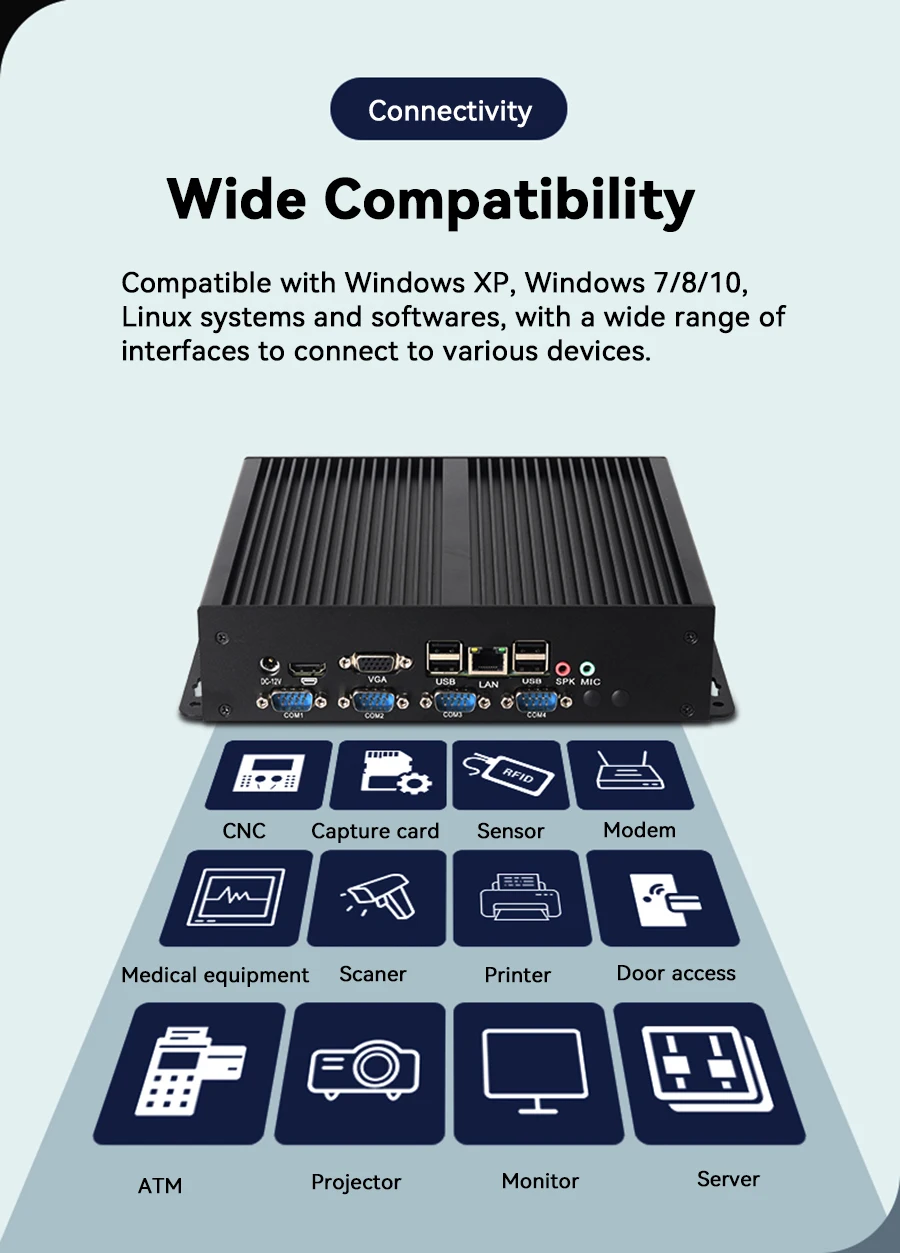

OS Support: Windows XP, Windows 7/8/10, Linux, Ubuntu

Origin: Mainland China

PC Dimension: 235X200X52mm

PC Size: 235x200x55mm

PC Weight: 2KGS

Processor Brand: Intel

Processor Model: i5-3317U, Celeron 1037U

Storage Temperature: -30 to +70℃

Type: Mini Desktop,Mini PC

USB Ports: 8x USB2.0

Use: Commercial

Working Temperature: -20 to +65℃

Working Voltage: DC 12V-5A

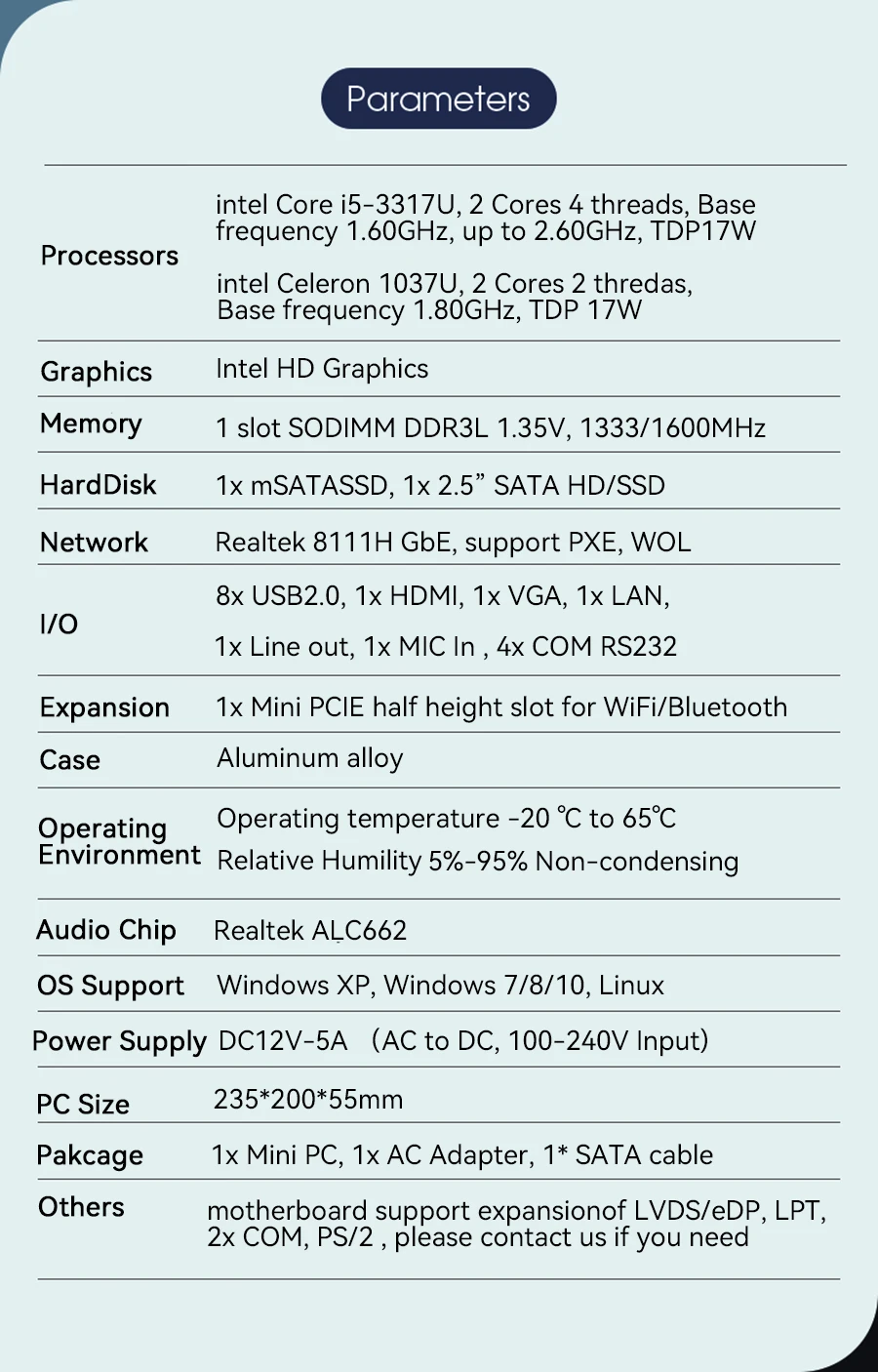

CPUs	Intel Celeron 1037U, 2 cores 2 threads, 2M Cache, base frequency 1.80GHz
CPUs	Intel Core i5-3317U, 2 Cores 4 Threads, 3M Cahce, base Frequency1.70GHz, up to 2.60GHz
Memory Type	1x SODIMM DDR3L socket, max support 1333/1600Mhz 8GB
Hard Drive Type	support1x mSATA SSD (defaulted install this type SSD)
Hard Drive Type	1x 2.5inch SATA3.0 HDD/SSD
Graphics	Intel HD Graphics ( based on processor )
Audio	Realtek ALC662
Audio	Supports Dual Channel, Stereo, Line out/MIC In

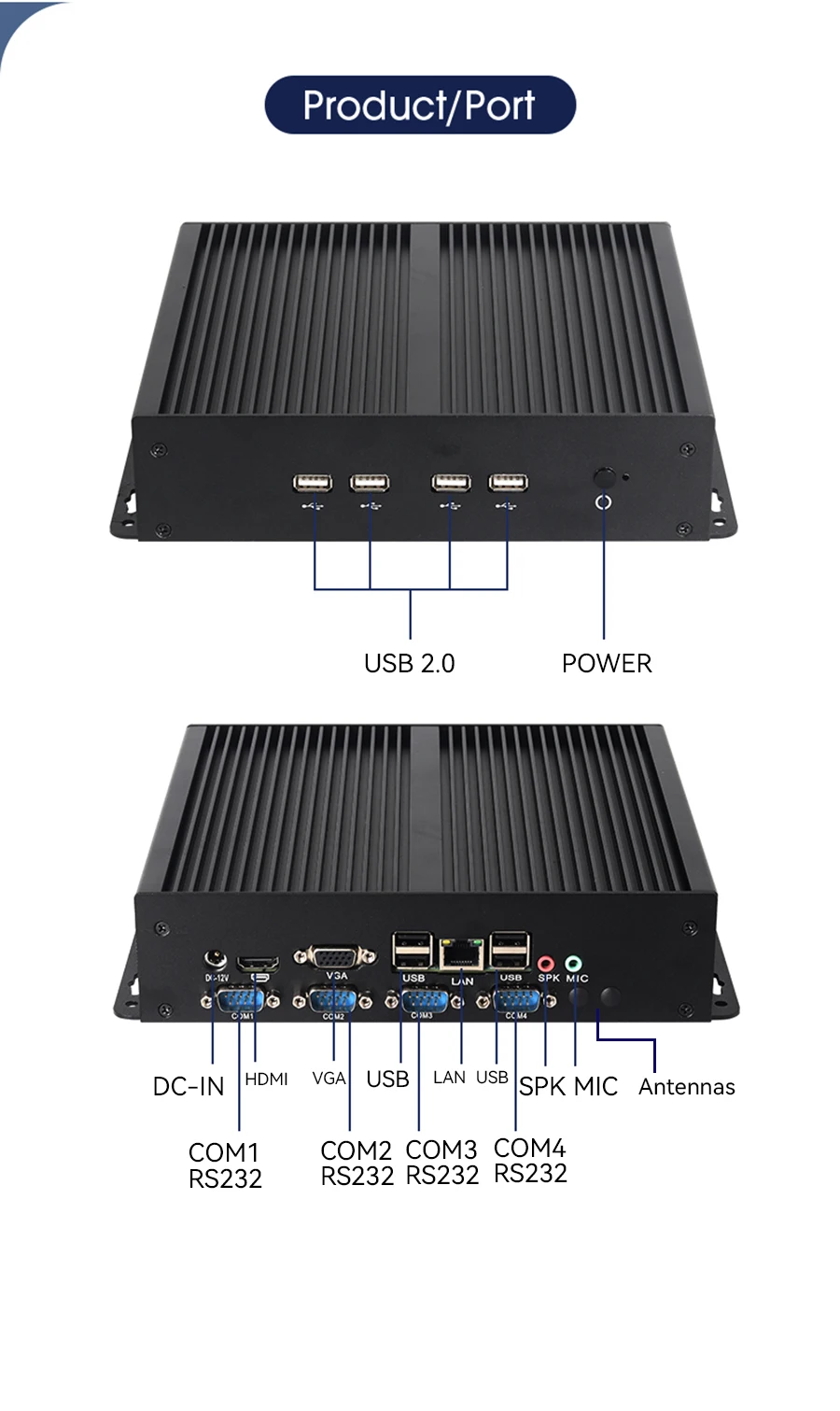

External I/O	8x USB2.0
	4x RS232
	1x HDMI ,1xVGA
	1x MIC ,1x SPK
	1 x Gigabit Ethernet Realtek 8111F, support PXE, Wake on LAN

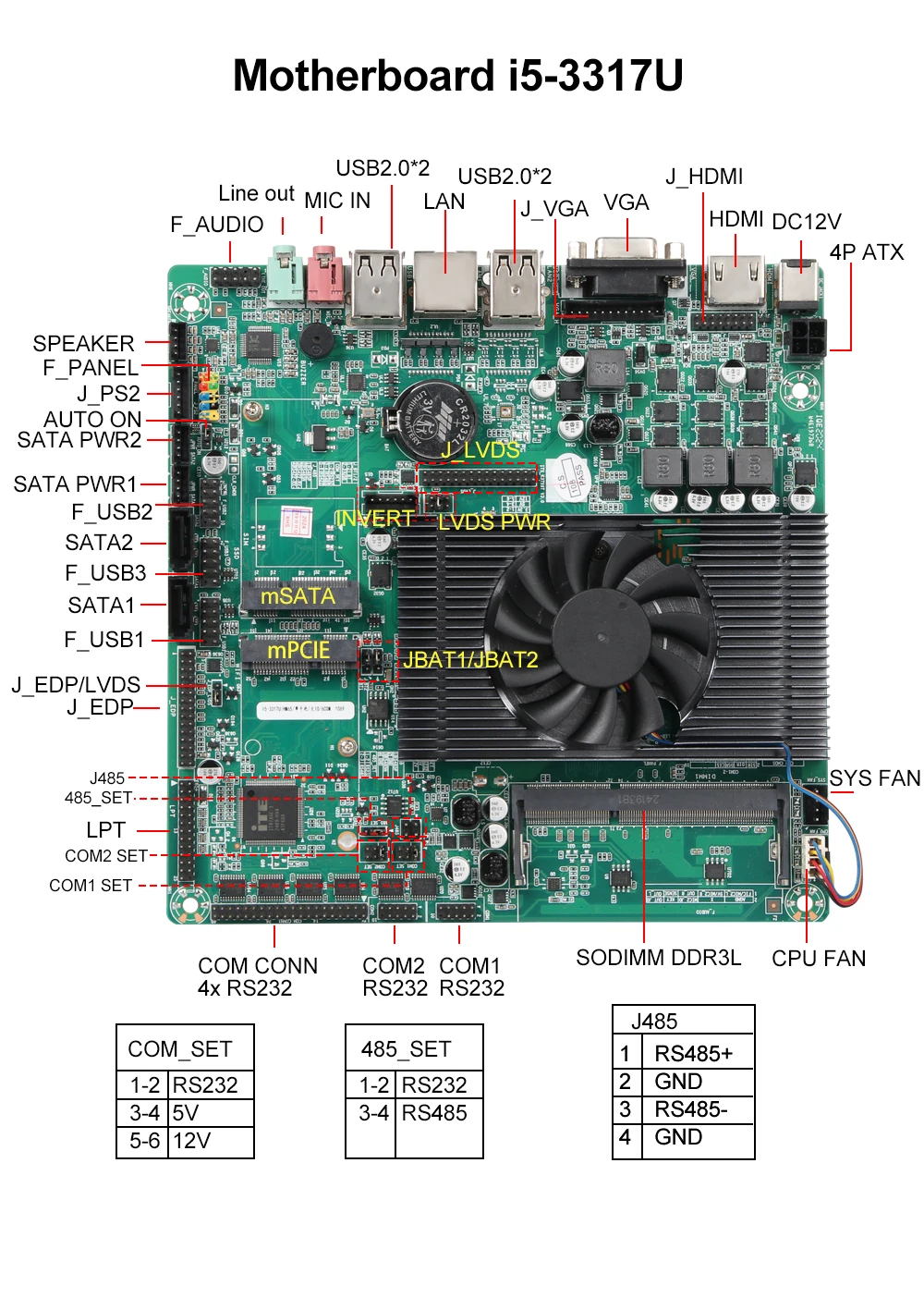

Expasnion	1 x mini PCIe socket ( half height szie )for WiFi or 3G 4G LTE modules 1x LVDS/EDP 1x LPT 1x PS2 1x RS485 (J485) extra 2x USB2.0 (F_USB1) extra 2x RS232 (JCOM1 JCOM2)
Power Adapter	DC12V-3A
OS Support	Windows XP
	Windows 7
	Windows 8.1
	Windows 10
	Linux/Ubuntu/CentOS...

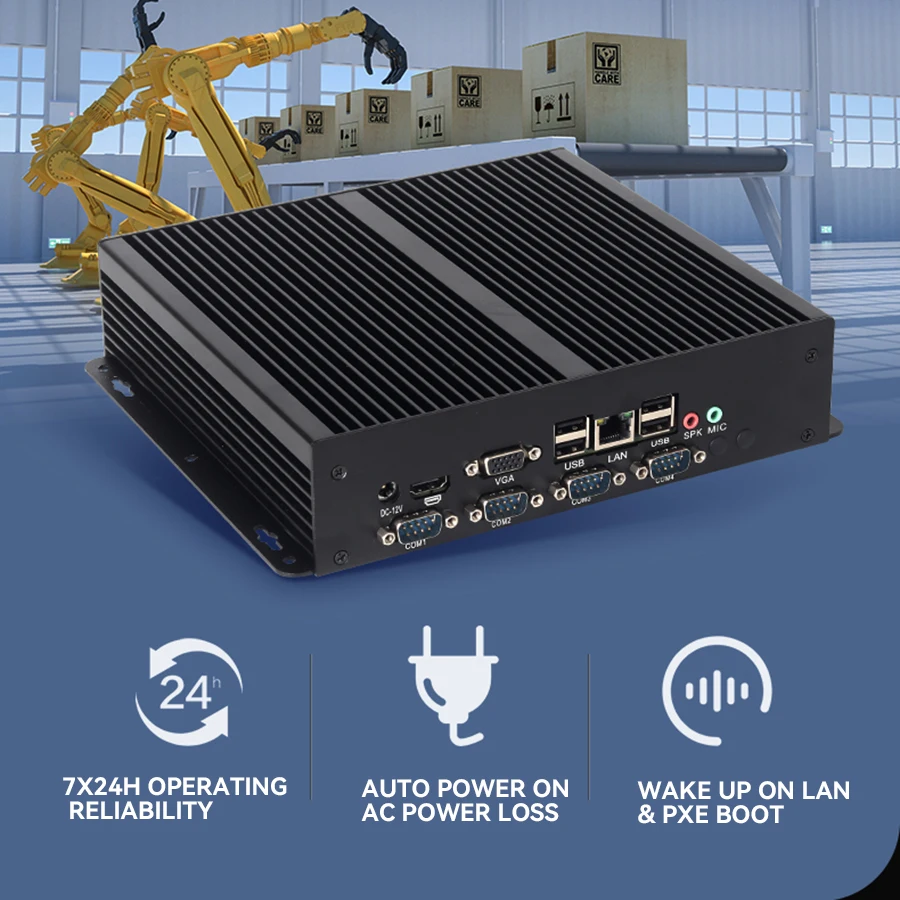

Features	Support WOL, PXE, Automatically power on when power input
Working Temperature	﹣20℃TO﹢70℃
Storage Temperature	﹣20℃TO﹢70℃, 5%~95% non-condensing
Dimension	235x200x50mm
Mounting	Wall-mount / VESA

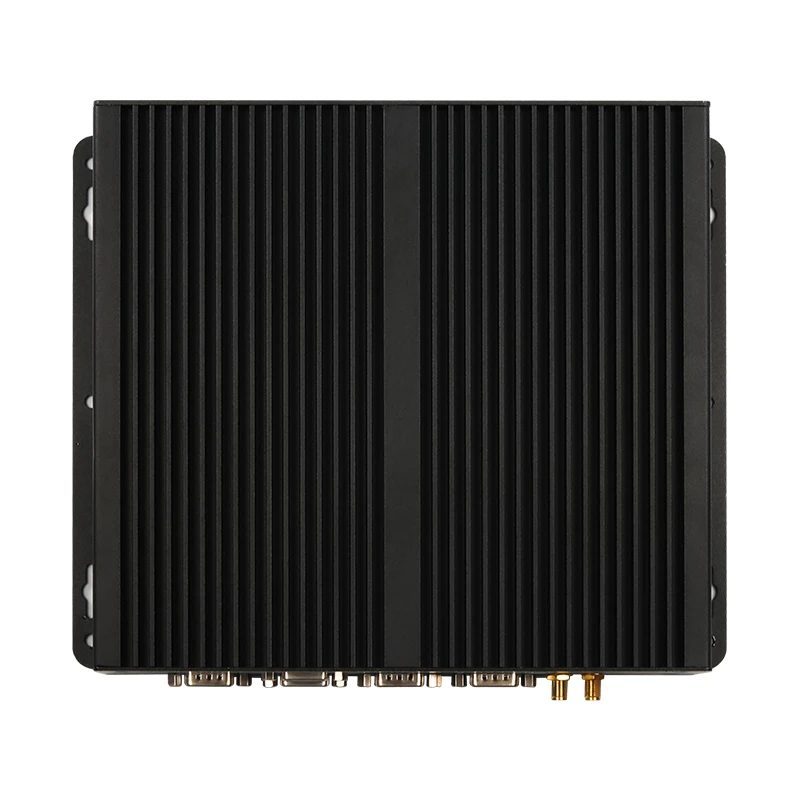

Construction	Fanless passive cooling aluminum chassis
Package	1 x Mini PC
	1 x AC adapter
	1 x Power cord
	1 x SATA cable
	1 x User guide

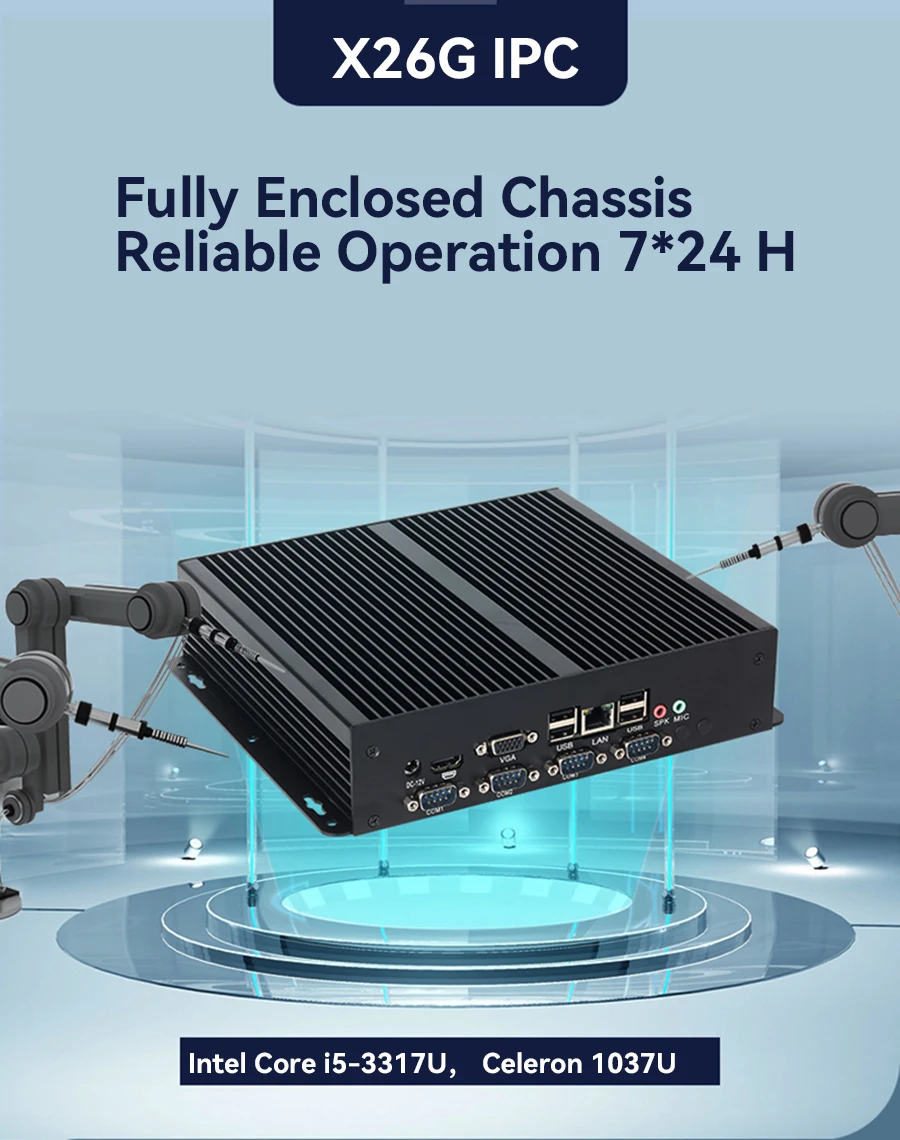

XCY Fanless Industrial Mini PC Intel Core i5-3317U 4x COM DB9 8x USB Support Windows XP/7/8/10 Linux
