Product Description

CPU: Q10922H6: Intel Alder Lake-N N100 Processor (4 Cores, 4 Threads, 6M Cache, up to 3.4GHz, TDP 6W), Intel UHD Graphics
Q10932H6: Intel Alder Lake-N Core i3-N305 Processor (8 Cores, 8 Threads, 6M Cache, up to 3.8GHz, TDP 15W), Intel UHD Graphics
Q11022H6: Intel Twin Lake-N N150 Processor (4 Cores, 4 Threads, 6M Cache, up to 3.6GHz, TDP 6W), Intel Graphics
Q11032H6: Intel Twin Lake-N Core i3-N355 Processor (8 Cores, 8 Threads, 6M Cache, up to 3.9GHz, TDP 15W), Intel Graphics

Memory: 1 x DDR5 SO-DIMM Socket (Up to 48G)
Storage: 1 x M.2 for SSD (M key, Type: 2280, PCIe 3.0 x 1)
OS: Support UEFI Windows, UEFI Linux, Unix-incompatible

LAN Chipset: 2 x Marvell AQC113 10 Gigabit LAN
4 x Intel I226-V 2.5 Gigabit LAN

Chipset: By CPU
Audio: No
AES-NI: Yes
Watch Dog: Yes
Kensington Lock: No

Operating Temp: 0°C~50°C
Non-Operating Temp: -20°C~80°C
Humidity: 10%~90%

Power Adapter: 12V5A
DC Jack: 5.5mm, 2.5mm

Dimension: 196 x 122 x 47mm
Material: Aluminum Alloy
Cooling Mode: Fan
Mounting: VESA Mounting Bracket

Interfaces Description

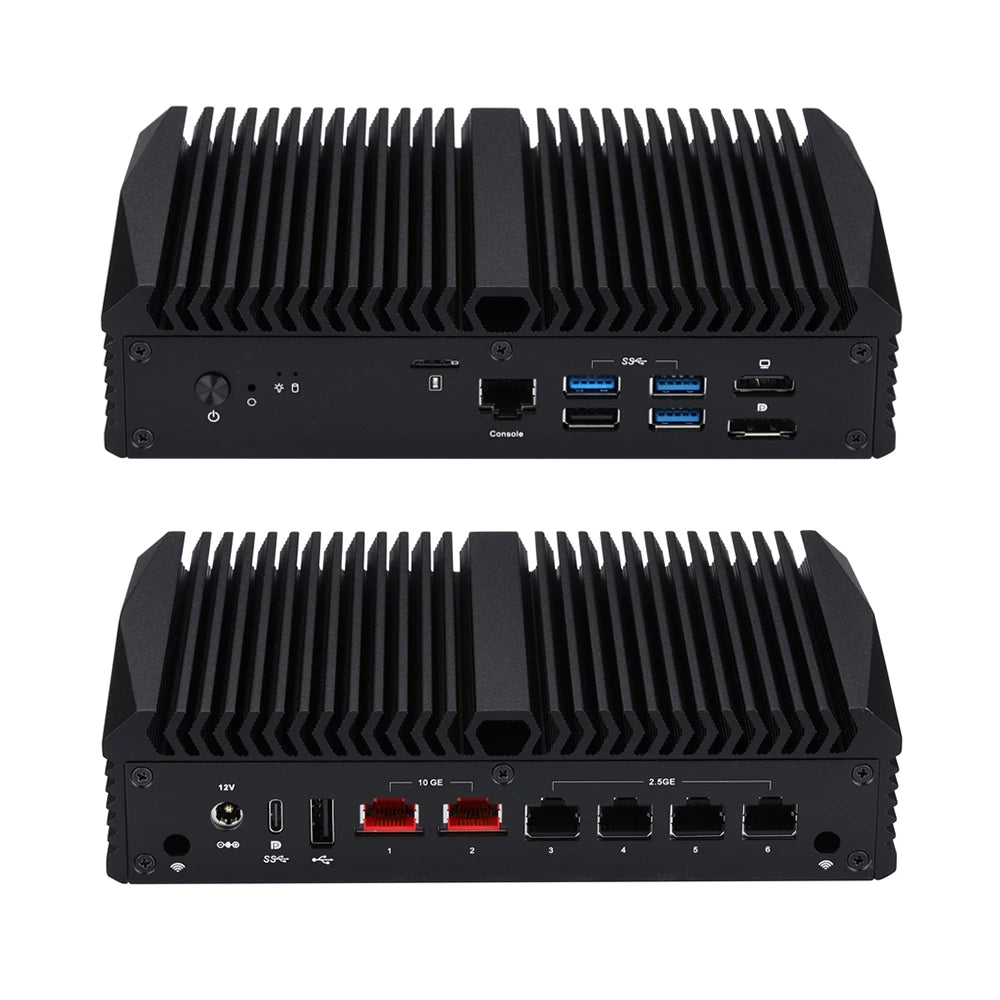

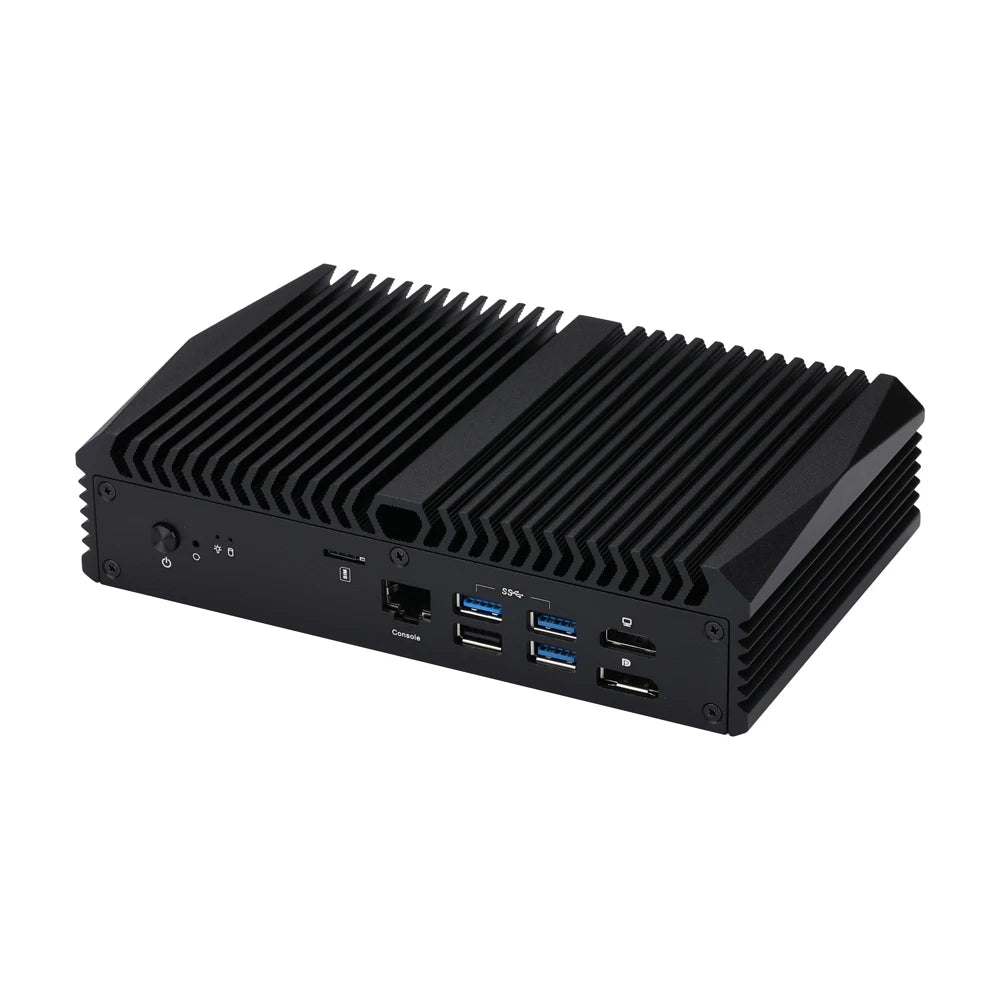

Front I/O
-Power Button: 1 x Power Button, 1 x Reset Button
-LED: 1 x Power LED, 1 x HDD LED
-SIM Slot: 1 x Nano SIM Slot
-Serial Port: 1 x RS-232 Port (RJ-45), 2 x USB 2.0 (Option)
-Video Output: 1 x HD Video, 1 x Display Port
-USB: 3 x USB 3.0, 1 x USB 2.0

Rear I/O
-Power: 1 x DC Jack
-USB: 1 x USB 2.0
-Type C: 1 x Type C (USB 3.0, Display Port)
-LAN: 2 x Marvell AQC113 10 Gigabit LAN
4 x Intel I226-V 2.5 Gigabit LAN

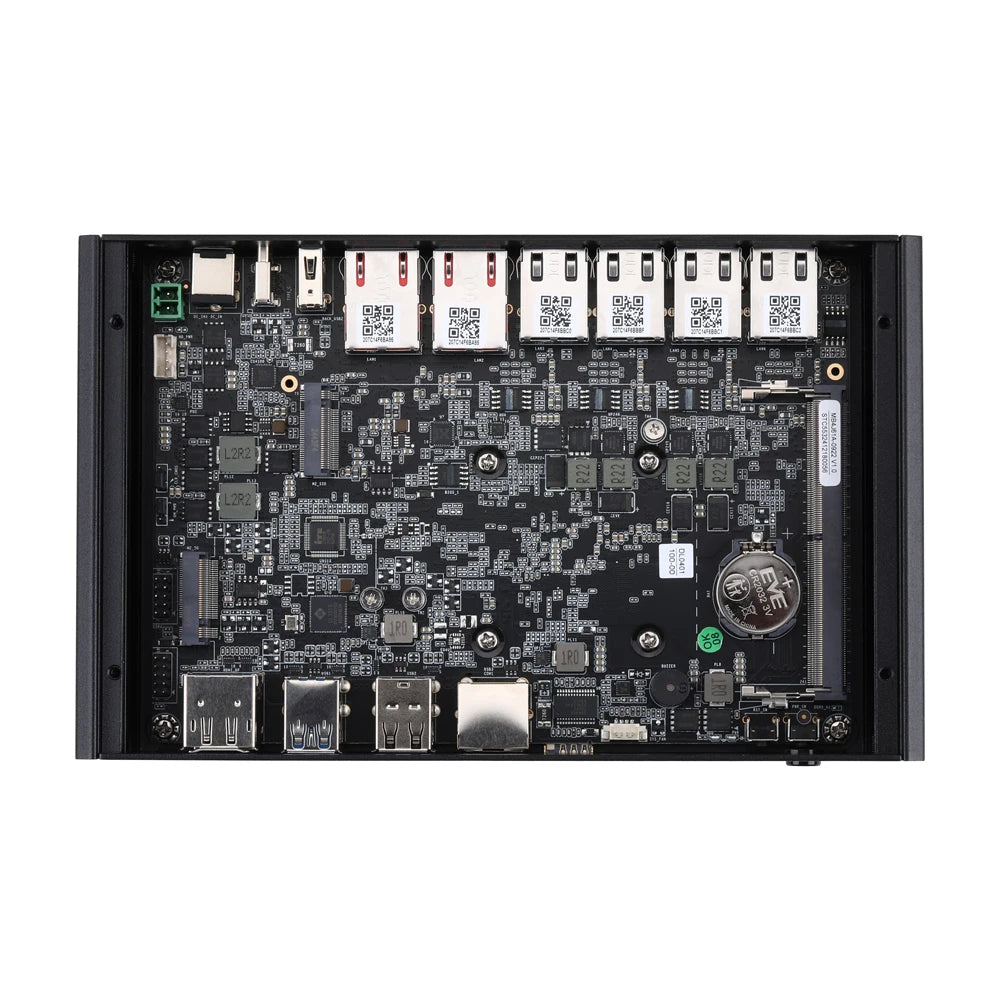

Internal Description

eMMC: No
M.2: 1 x M.2 for 4G/5G (B key, Type: 3042/3052)
M.2: Wi-Fi support via a Converter Card (Option)
SIM Card Slot: 1
AutoStart Jumper: Yes, 1 x 3Pin, Pitch 2.54mm
CMOS Clear Jumper: Yes, 1 x 3Pin, Pitch 2.0mm
GPIO: 1, 2 x 5Pin, Pitch 2.0mm
Power Header: 1, 1 x 2Pin, Pitch 3.5mm, Phoenix 2Pin

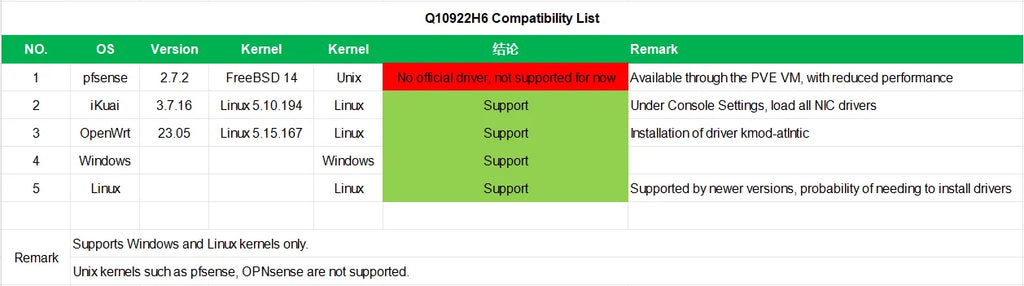

Operating System

1) If the product is with RAM and SSD, it comes with pre-install unactivated UEFI Windows 10 in English for test, and we DO NOT provide any Windows license.
You also can install OS and software package by yourself.Press F11 key boot from USB Drive, press Delete key enter into BIOS.
2) We can provide Windows drivers download link and motherboard user manual download link.

Packing Included

1 x Mini PC
1 x Screws
1 x VESA Mount Bracket

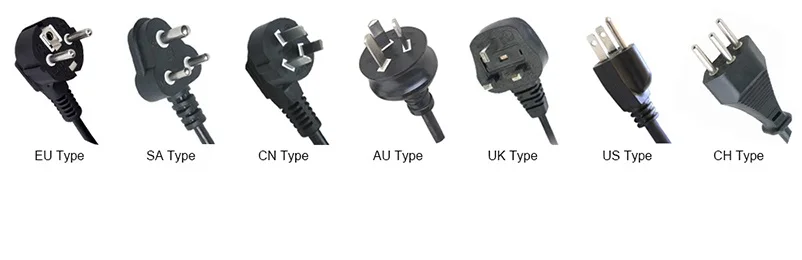

1 x Power Adapter with Plug
2 x Antennas (Only configuration is included WiFi)
