SPECIFICATIONS

Audio Input: 3.5mm Combo Jack x 1

Audio Output: HDMI x1;Type-C x2;3.5mm Combo Jack 4 in 1 x1

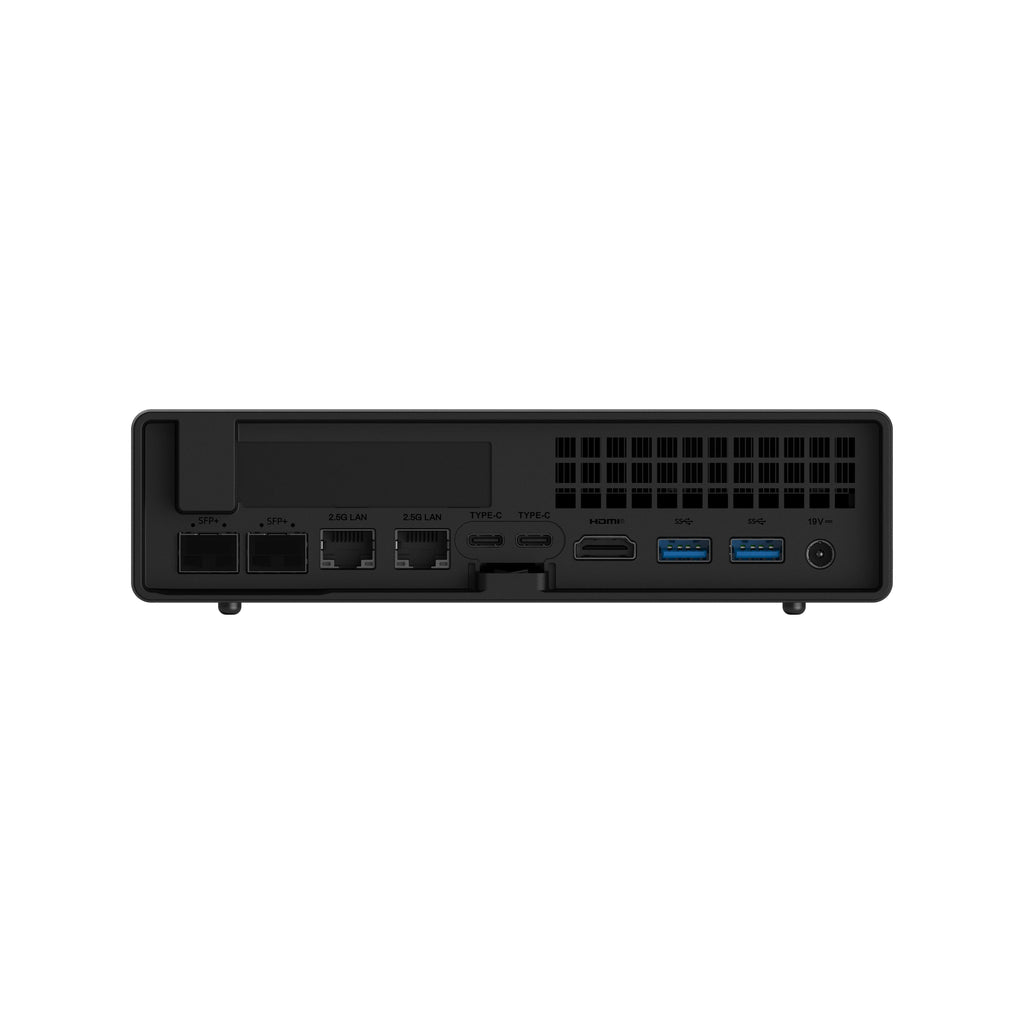

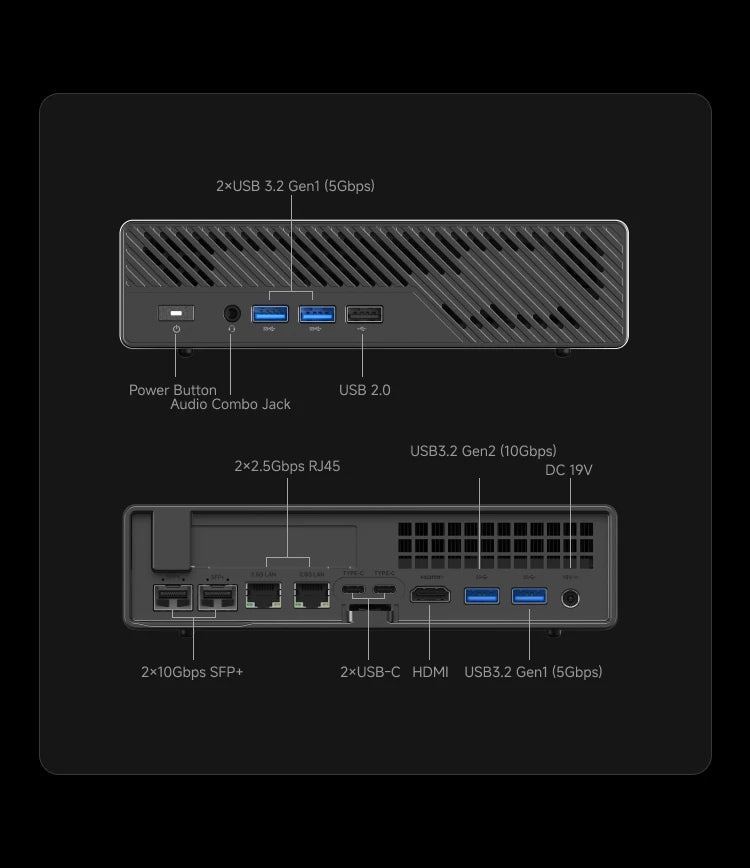

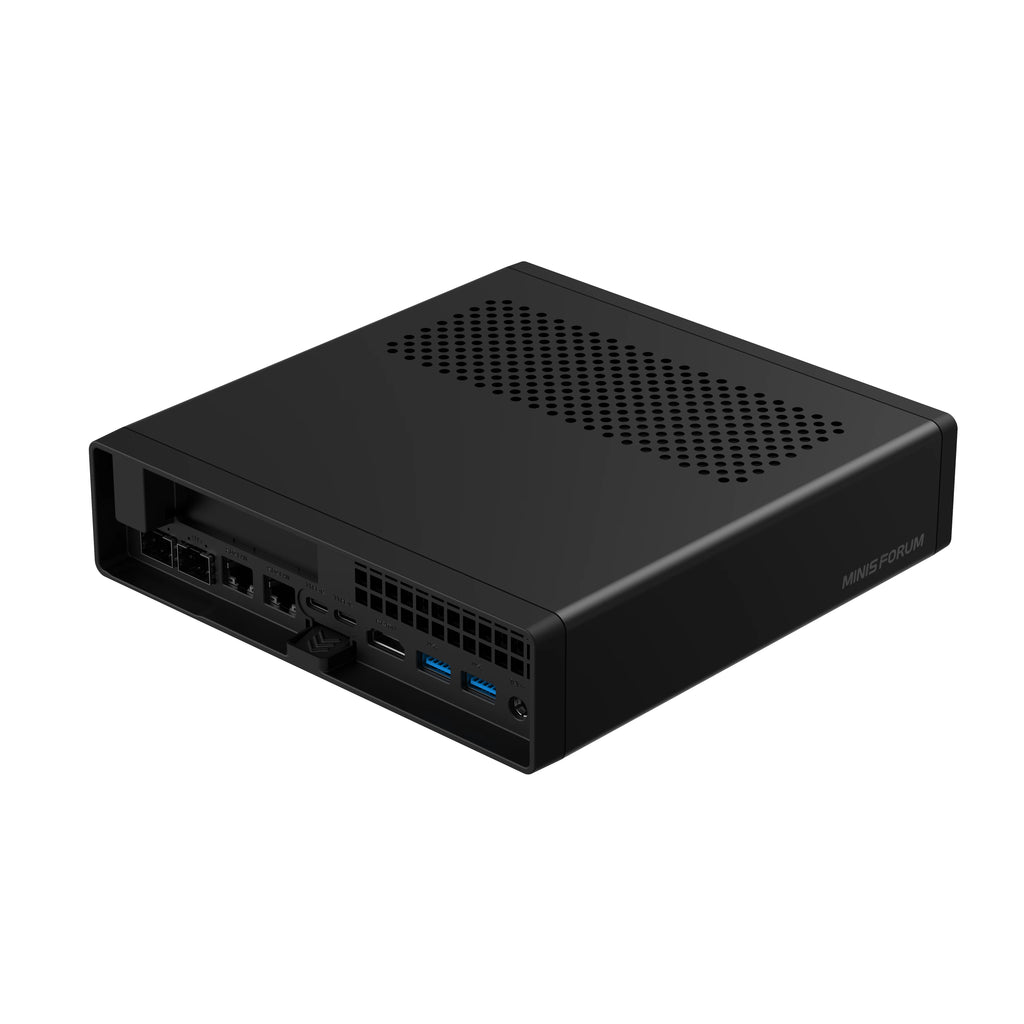

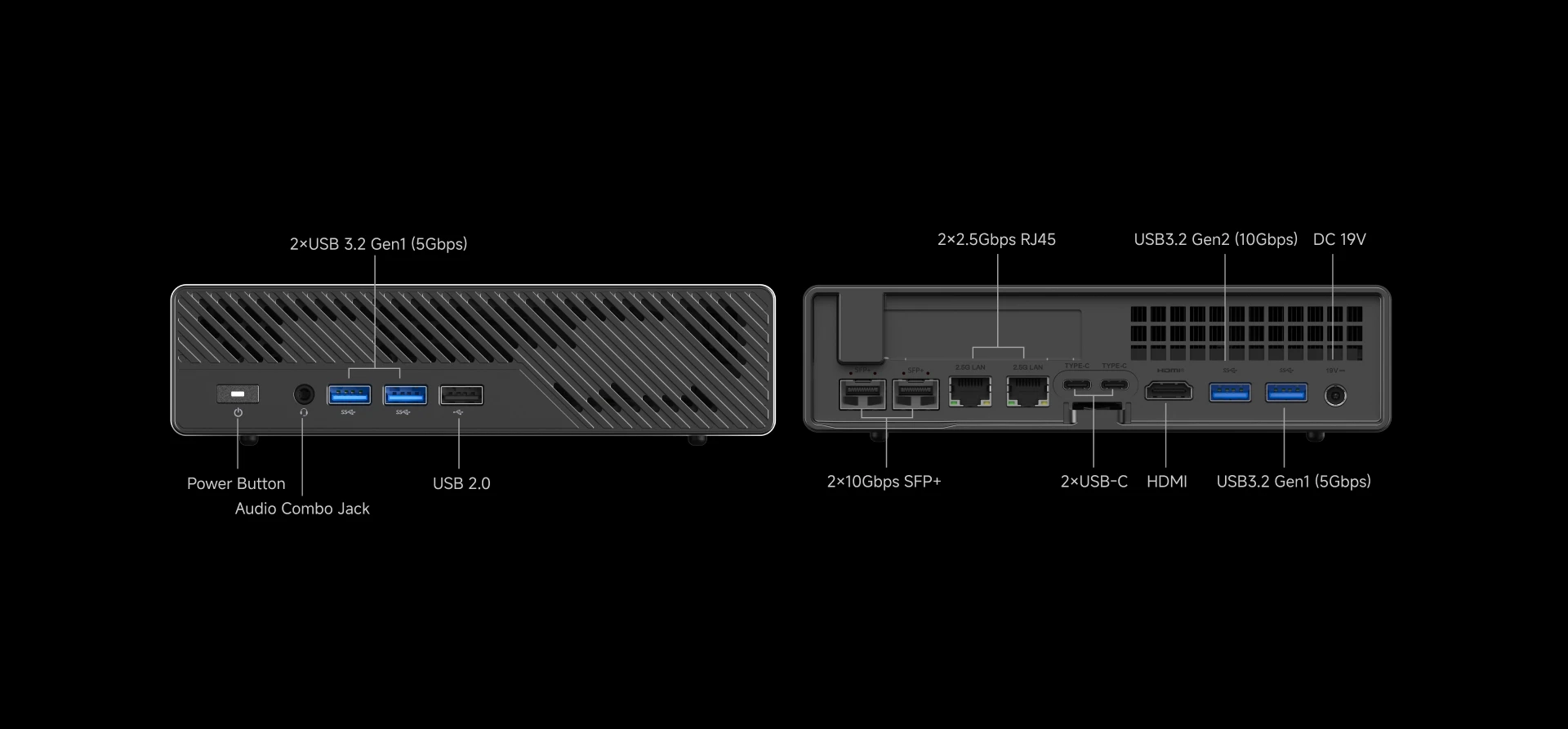

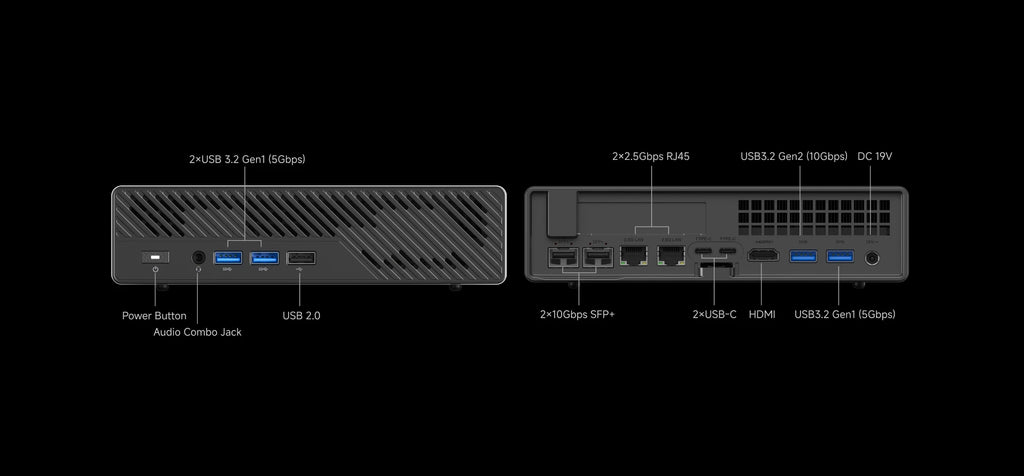

Back l/O Ports: USB-C(USB3.2 Gen2 ,10Gbps,Alt DP2.0) x 2HDMI 2.1 x12.5Gb LAN(RJ45,Realtek RTL8125)x12.5Gb LAN(RJ45,Intel 1226-V) x 110G SFP+(Intel X710) x2USB3.2 Gen2(10Gbps) x1USB3.2 Gen1(5Gbps) x1

Brand Name: SZBOX

Button/Hole: Power Button x 1 Reset Hole x 1

CPU: AMD Ryzen 9 9955HX(Zen 5 , 16 Cores , 32 Threads, 64M L3 Cache,Max Boost Clock Up to 5.4 GHz)or AMD Ryzen 9 7945HX(Zen 4 , 16 Cores , 32 Threads, 64M L3 Cache,Max Boost Clock Up to 5.4 GHz)

Certification: CE,FCC,RoHS

Front l/O Ports: 3.5mm Combo Jack x 1USB 3.2 Gen1 (5Gbps) x 2 USB 2.0 x1

GPU: AMD Radeon 610M

Graphics Card Type: Integrated Card

Hard Drive Capacity: 1TB

Hign-concerned Chemical: None

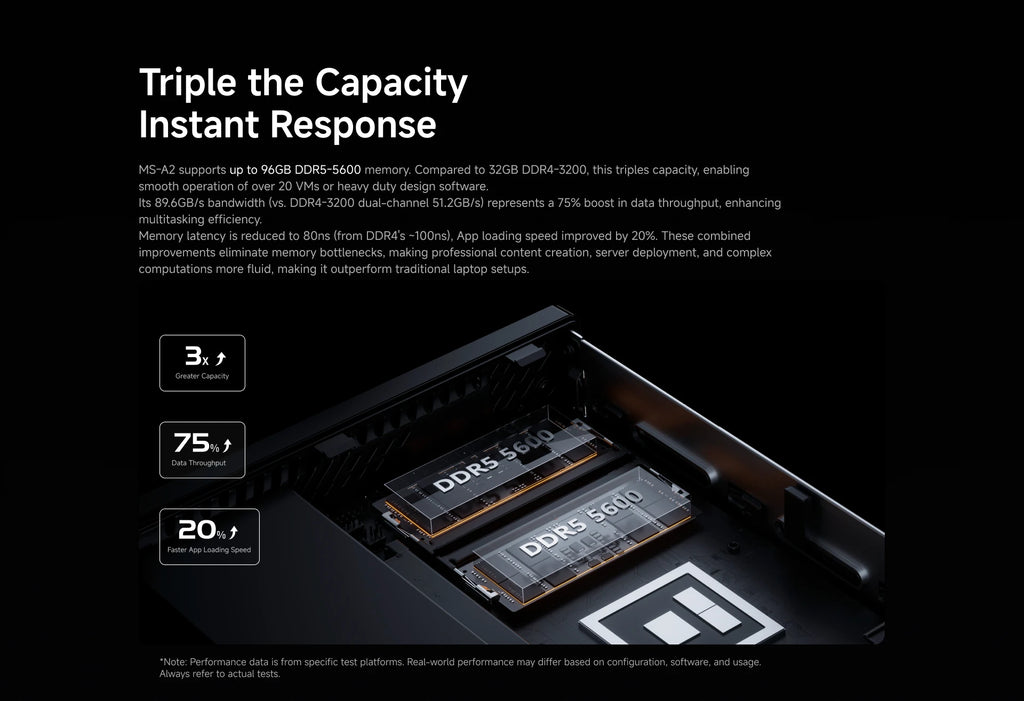

Memory: Up to 96GB DDR5 (SO-DIMM x2)

Memory Capacity: 16GB

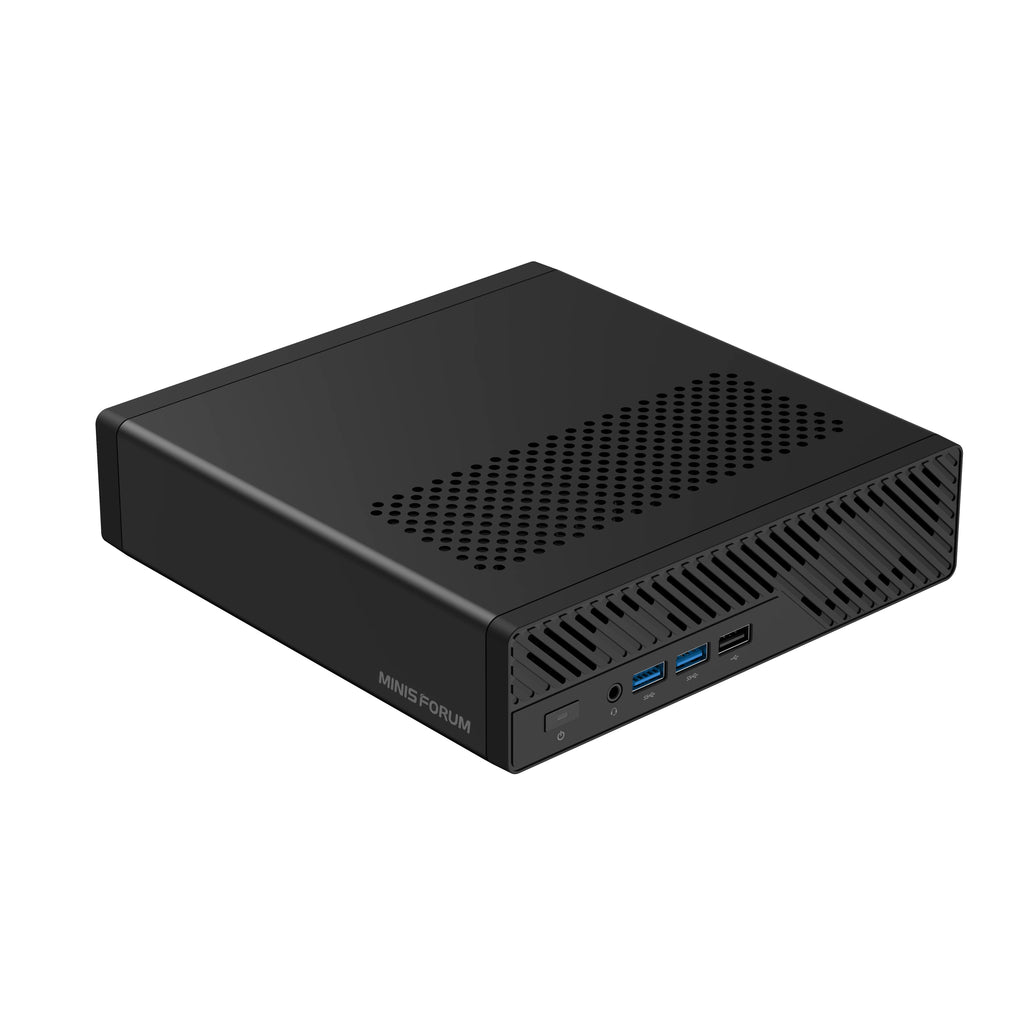

Model Number: MS-A2

OS: Windows 11

Origin: Mainland China

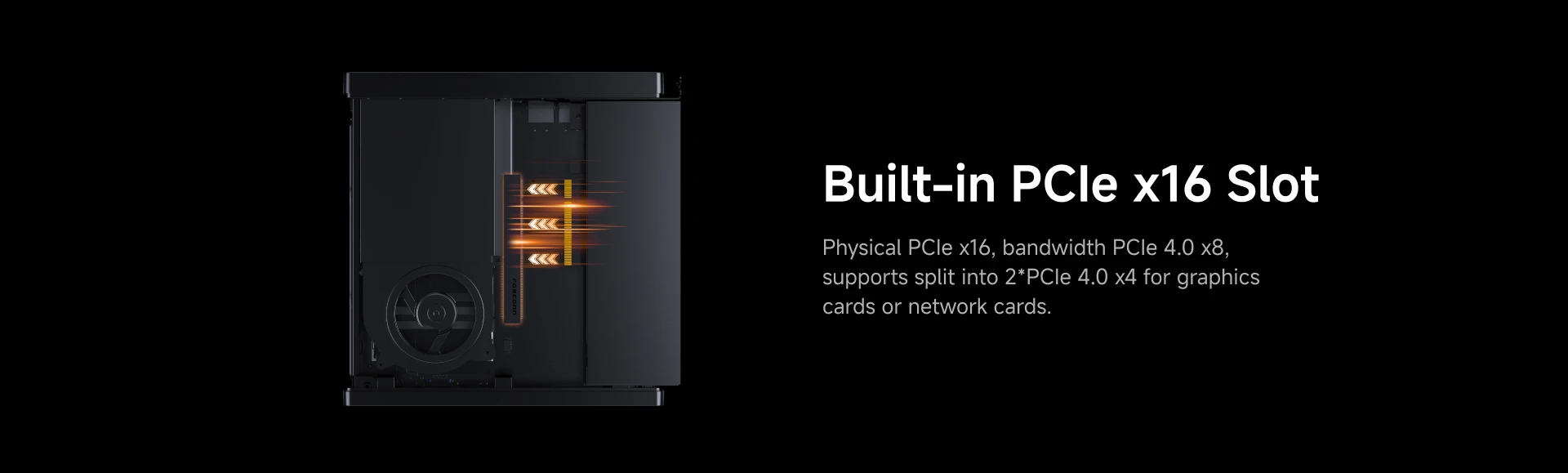

PCIE Expansion: PCIE x16 (PCIE4.0 x4)

Power Adapter: 19V/12.63A

Processor Brand: AMD

Processor Model: AMD 7945HX/9955HX

Ryzen 7000 Series: DDR5(SO-DIMM x2),up to 5200Mhz

Ryzen 9000 Series: DDR5(SO-DIMM x2),up to 5600Mhz

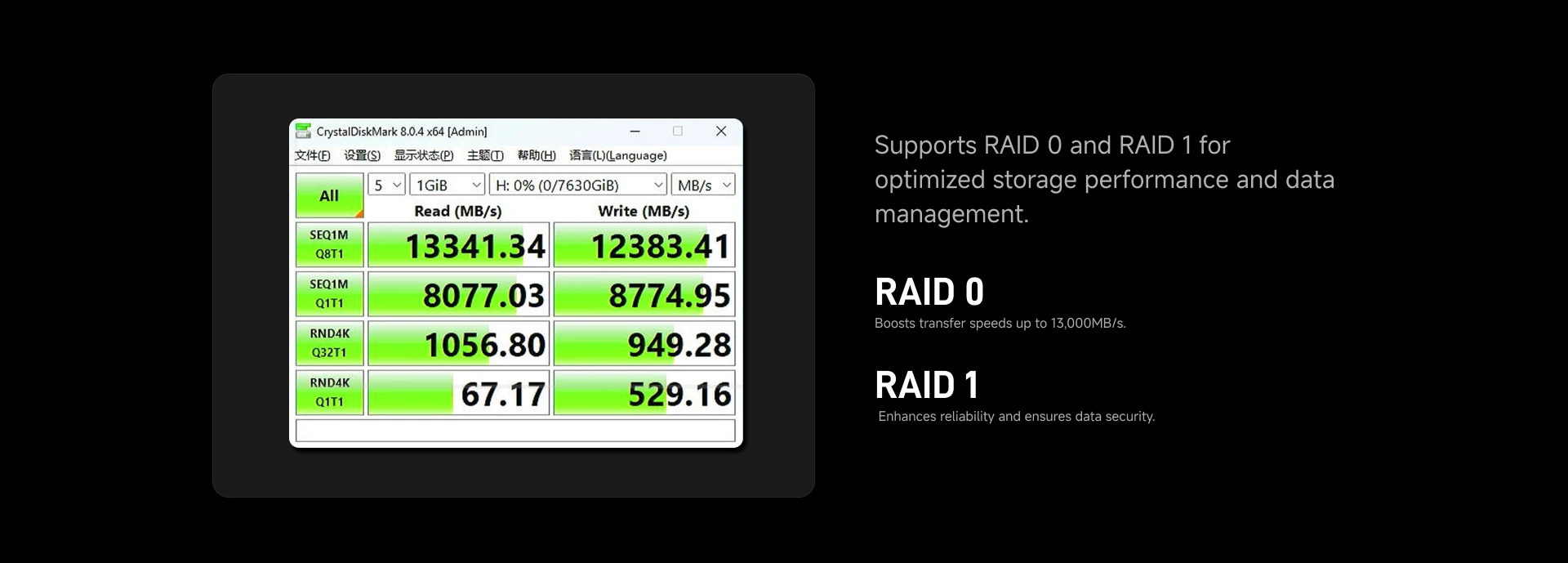

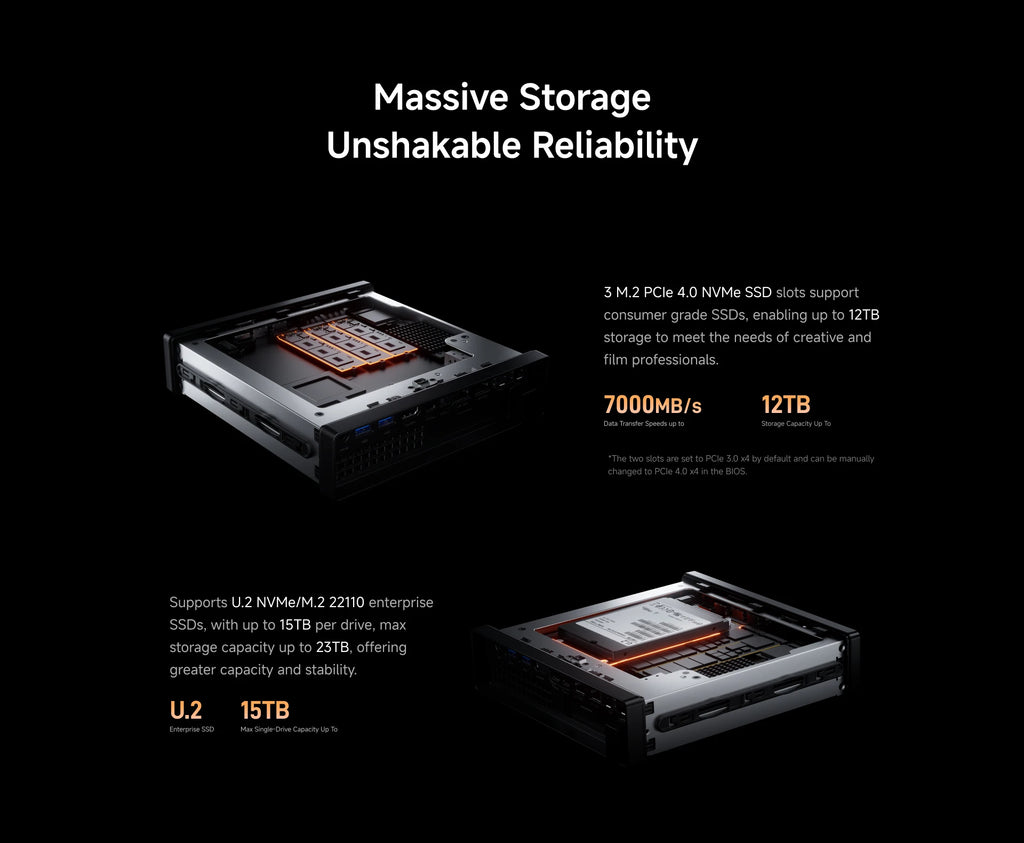

Storage: M.2 2280/U.2 NVME SSD x1 (Up to 15 TB U.2.PCle 4.0x4) M.2 2280/22110 NVME/SATA SSD x2 (Up to 4 TB/Solt,default PCle 3.0 x4, up to PCle 4.0 x4)

Type: Mini Desktop,Mini PC

Use: Household

Video Output: HDMI x1 (Up to 8K@60Hz) USB-C x 2(Up to 8K@60Hz/4K@144Hz)

Wireless Connectivity: WiFi 6E & Bluetooth 5.2
