Audio: 3.5mm combo jack
BIOS Settings: Auto Power ON / Wake on LAN / PXE
Brand Name: Mele
Certification: CE,FCC,pse
Graphics Card Type: Integrated Card
HDMI: 2 x HDMI 2.0 (max.4096x2160 4K@60 Hz)
Hard Drive Capacity: 120GB
Hign-concerned Chemical: None
Integrated GPU: UHD Graphics
Memory Capacity: ≥ 4GB
Model Number: Quieter3C
Origin: Mainland China
Processor: Intel Celeron Processor N5105
Processor Brand: Intel
Processor Main Frequency: 2.0 to 2.9 GHz
Processor Model: N5105
RAM: 4GB
Security: Kingsenton Lock Slot
Storage: 128GB
Storage Expansion: 1x Micro SD card Slot, 1x M.2 SSD Slot
Type: Mini Desktop,Mini PC
USB: 2x USB3.2 Gen2 + 2x USB3.1 Gen1
USB Type C: Power input, Data transfer, DP
Use: Multimedia
Wired Connection: 1000Mbps Gigabit Ethernet
Wireless Connection: WiFi 5, Bluetooth5.1
Specification
【 Processor & OS 】
- Intel Celeron Jasper Lake Quad Core Processor:
N5105 (2.0~2.9 GHz), Intel UHD Graphics
- Operating System: Support Linux, Ubuntu, Debian, etc...
-Language: pre-installed English, Spanish, Russian, French, German, Italian, Portuguese, Polish, Dutch, Swedish, Japanese, Korean, Arabic, Hebrew etc.; Support 100+ languages
- BIOS: Support Wake on LAN / PXE/ BIOS One-Step Reset/ Auto Power on/ RTC wake up
【 Storage 】
- Memory: 4GB LPDDR4
- Storage: 128GB EMMC on-board Storage ,256GB SSD, 512GB SSD

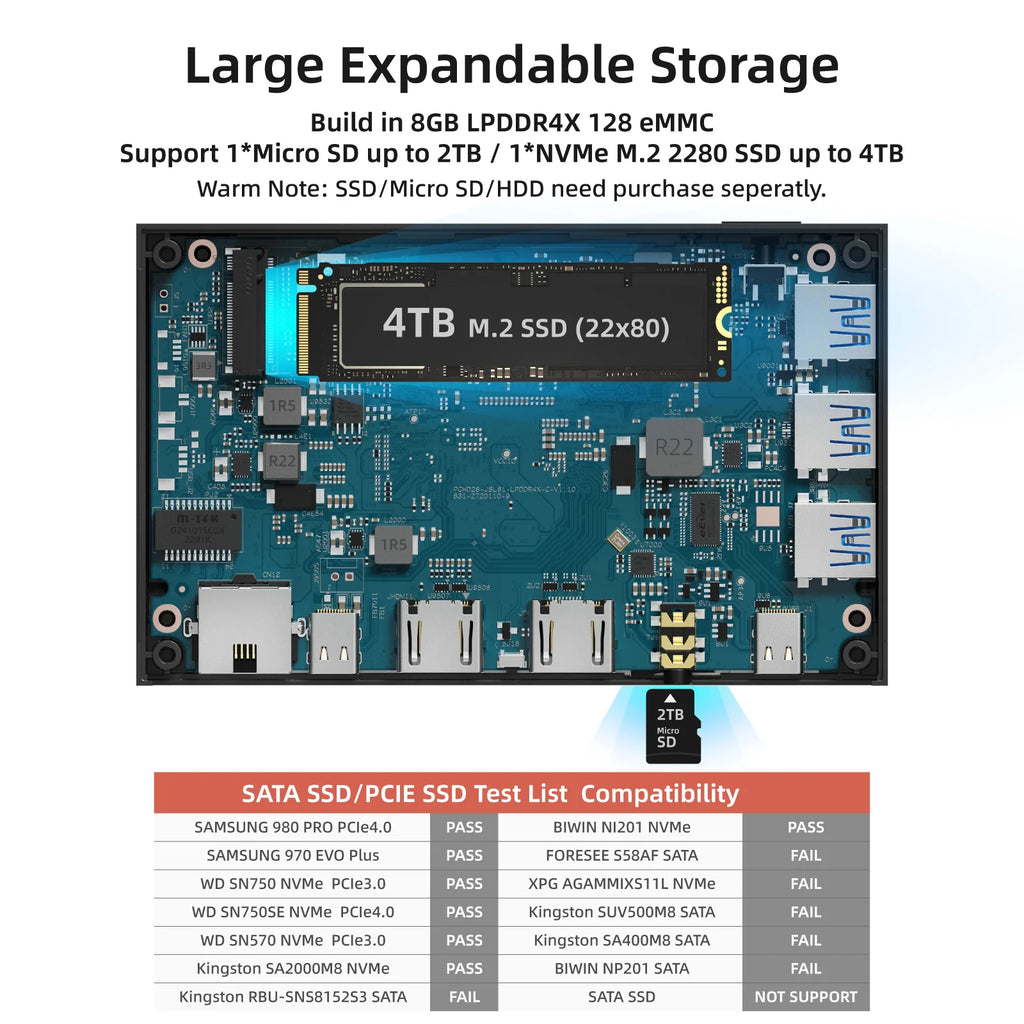

- Storage expansion: Support Mirco SD card, M.2 SATA 2280 x1 / M.2 NVMe 2280 x1, SSD and Micro SD Card are not included

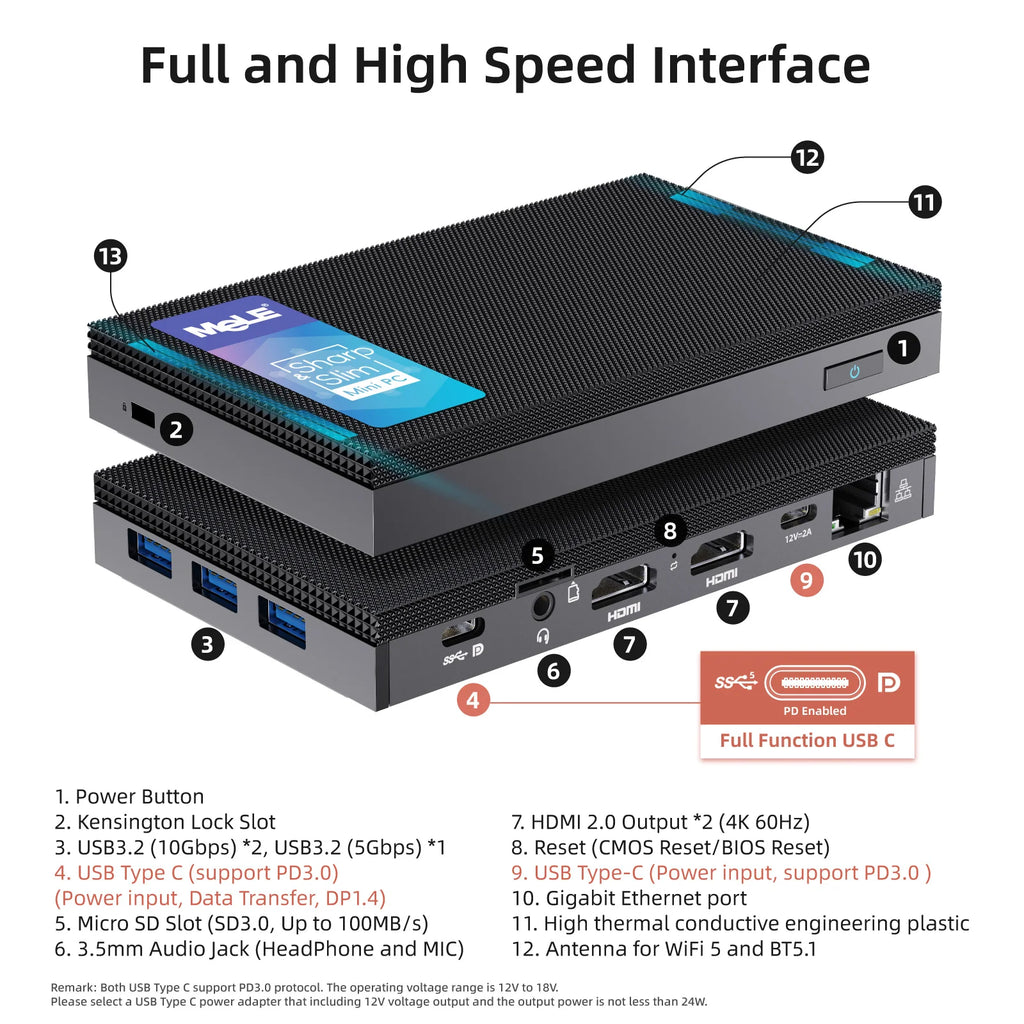

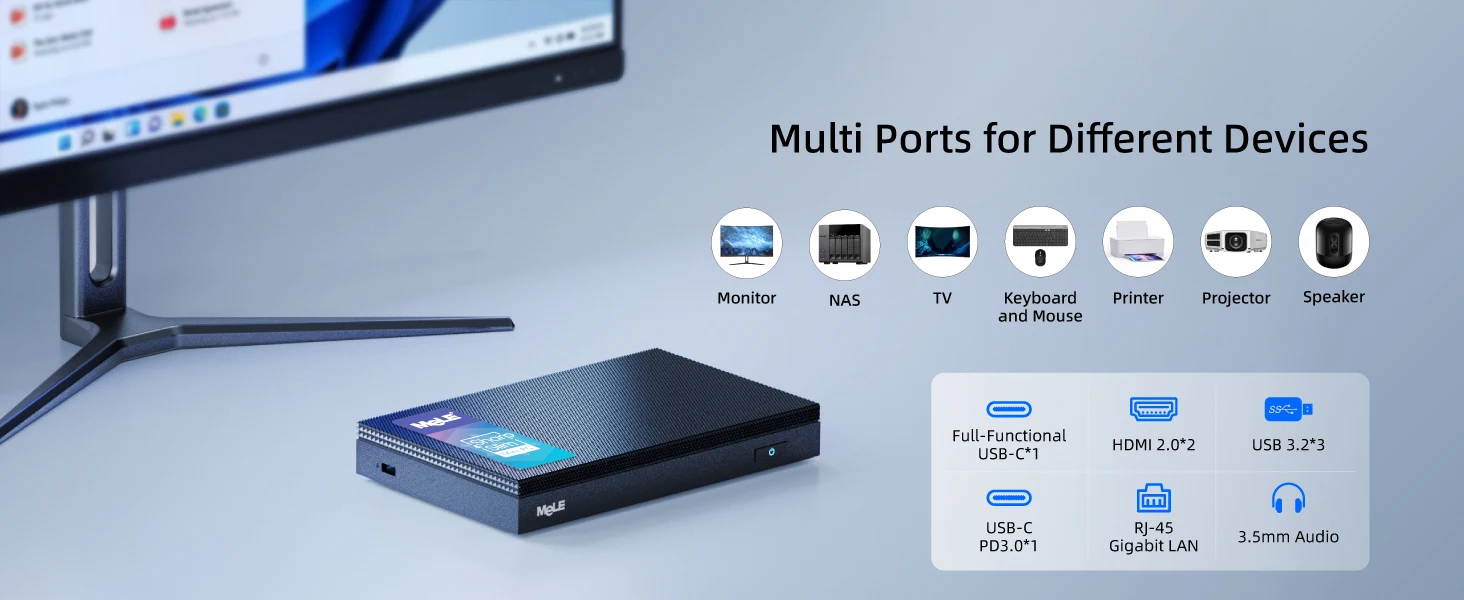

【 I/O Specification 】
2x USB3.2 Gen2 + 2x USB3.1 Gen1
1x HDMI 2.0 port, support 4K@60Hz
1x 3.5mm Audio combo jack
1x Micro-SD Card Slot
1x Gigabit LAN Port
1x Kensington Lock Slot
1x USB Type-C (Only for power input: 12V2A, supports PD protocol)

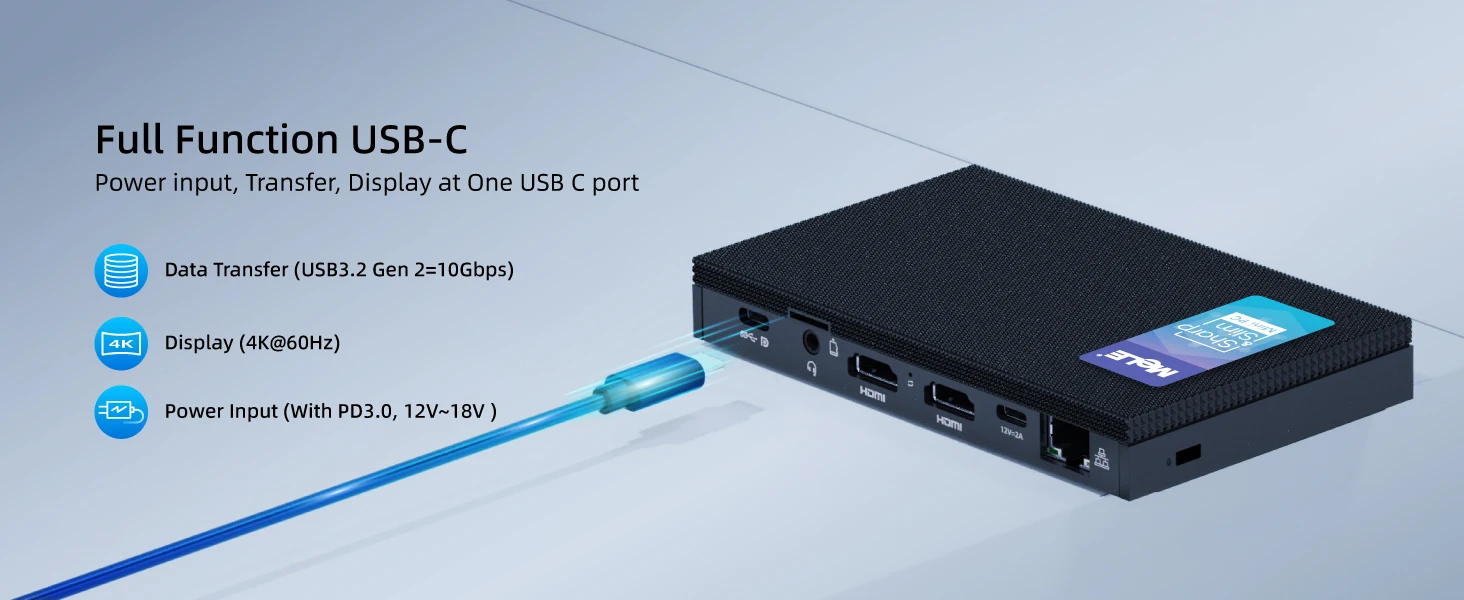

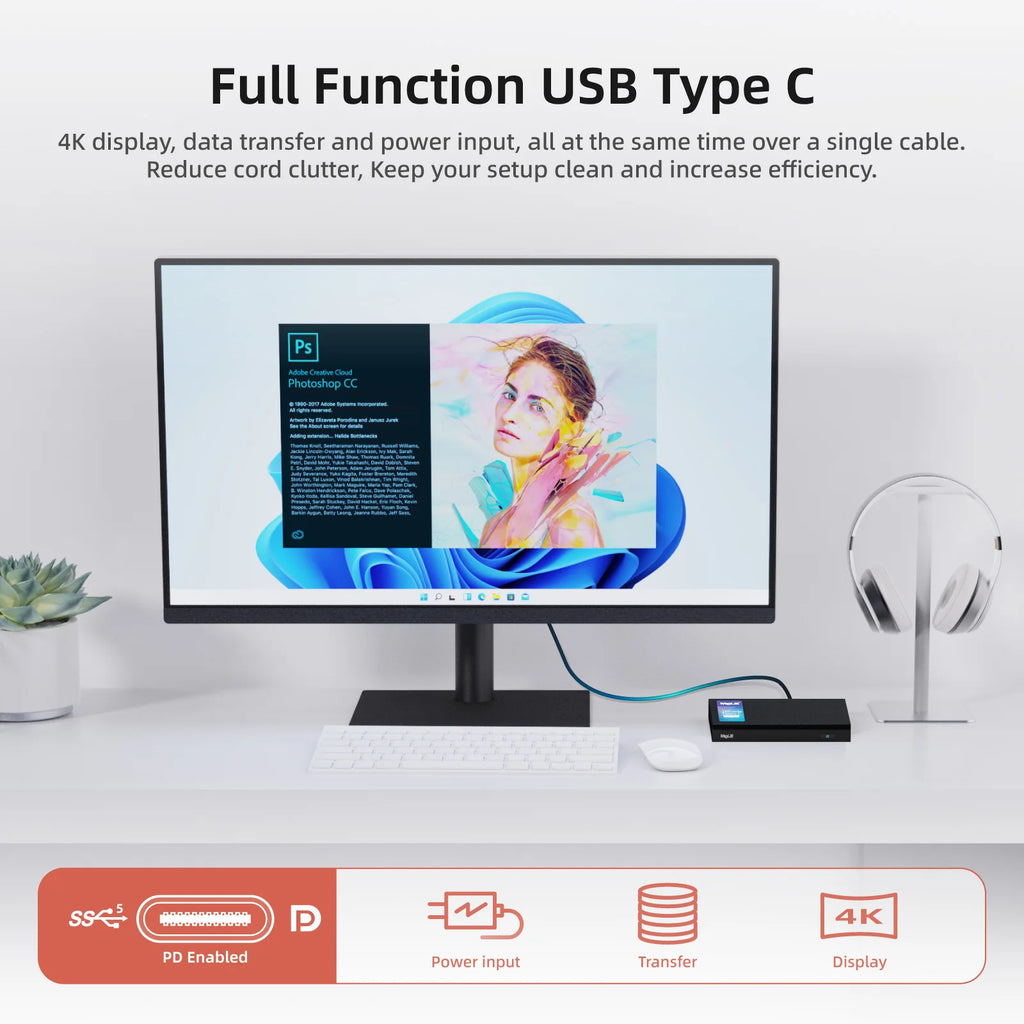

1x USB Type-C (Full function, Combining DP1.4, USB 3.1 Gen1 and Power input(With PD3.0 protocol))
2x HDMI2.0
【 Network and Wireless Connection 】
Support WiFi 5, Bluetooth5.1
1x Gigabit LAN Port
Product Size 131 x 81 x 18.3mm
Product Weight 203g
Package Includes
1x Mini PC
1x Power Supply with EU/US/UK/AU Type Adapter (Adapters are optional depend on the sales regions)
1x Silicone cooling pad for SSD heat dissipation
1x User Manual

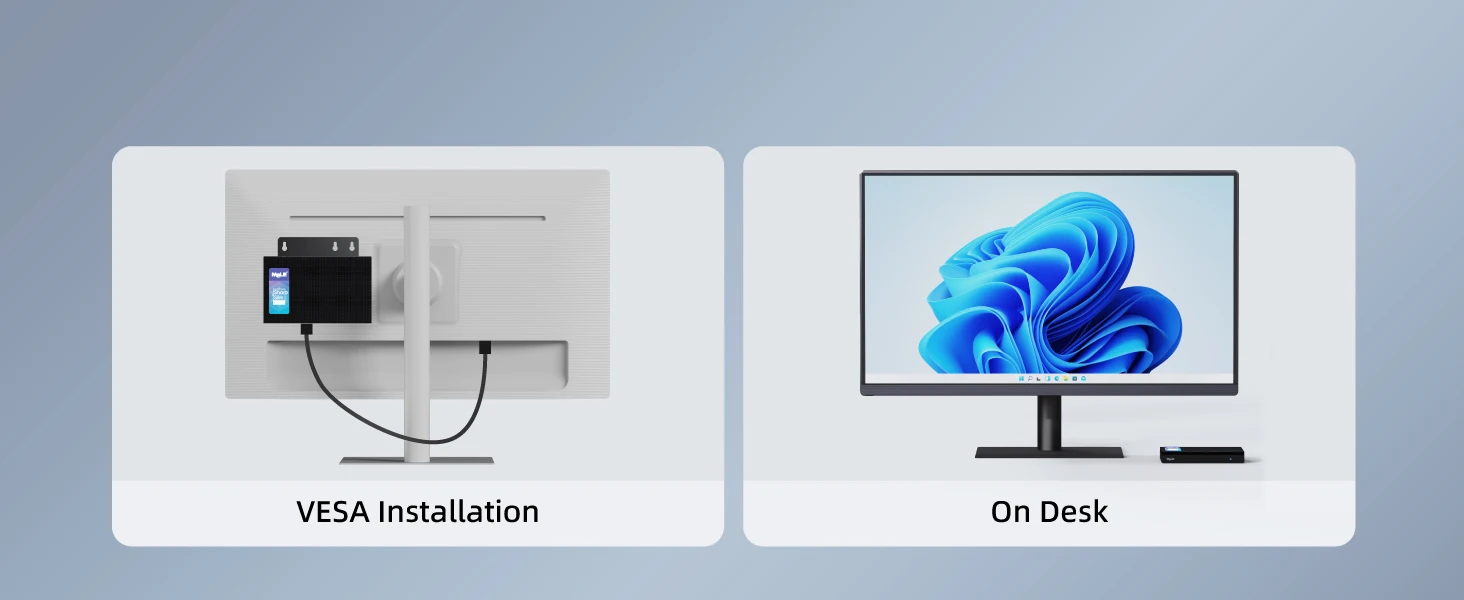

1x VESA mount
Warranty
We offer 12-month warranty for the hardware of each product under normal usage excluding deliberate damage, accidents, misuse on the product or damage caused by repairs or upgrades attempted by any unauthorized person.
After-sales Service
1. We offer 7x24 hours online service, please contact with us anytime when you need a support.
2. Please communicate with us if the product has any problem, we will offer you a satisfactory solution including new replacement or refund after confirming the problem.
Feedback & Reviews
1. If you are satisfied with our product and service, please kindly leave a positive feedback.
2. Please contact with us before leaving a negative feedback. We'll do our best to support you and provide a satisfactory solution.
About Tax
1. Our price does not include destination import duties, buyers are fully responsible for the import clearance. Please leave a message when you place the order if you have special requirement.
2. Due to the import clearance problem, if buyer refuse to receive the goods, buyer need to be fully responsible for the delivery cost back and forth.Thank you for you cooperation.
About 4K video display
Hardware decoding will not occupy CPU workload, it supports to smoothly play 4K local content. When we connect mini PC to 4K monitor to play 4K video online, we suggest setting 1080P.
Tips of Quieter3 Mini Computer
1. Can it be powered by power bank? Can it be used with other type-C power supply?
This Mini PC needs stable 12V2A power supply, it must be connected with MeLE original type-C power supply. Please don't power it by the power bank.
2. How to reinstall Windows OS?
Step 1, Prepare a USB flash disk with NTFS file system.
Step 2, Download the latest windows image from MeLE forum and decompression the .zip.
Step 3, Copy all the system files of the windows image to the root the direction of your USB flash disk.
Step 4, Plug the USB flash disk into Mini PC, and connect a keyboard.
Step 5, Press the power button and press F7 or Delete continuously to enter into boot menu. Select your USB flash disk to re-install Windows OS. There is no need to install driver separately with the install image provided by us.
Step 6, Mini PC will shutdown while the install process finished. Plug out the USB flash disk, then press power button to power on your Mini PC.
Please visit MeLE official website: www.mele.cn ->Forum or contact MeLE support to get the download link of Windows image and driver.
3. How to enter into BIOS Setting?
Press the power button and press F7 or Delete continuously to enter select boot device menu -> select Enter Setup and press Enter.
4. How to set Auto power on?
Step 1, Press the power button and press F7 or Delete continuously to enter select boot device menu -> select Enter Setup and press Enter to enter into BIOS Setting menu.
Step 2, Select Chipset -> Common Function -> Power on by auto or Manual-> Select Auto Power on .
Step 3, Then go to Save & Exit -> Save Changes and Exit -> Yes to complete this setting.
5. How to activate Windows?
Each MeLE Mini PC has preinstalled Windows 11 License, can support Personalization, Windows Update and reinstall Windows repeatedly. Windows 10 License ID/Product Key sticker is available on the product. Windows will be activated automatically when MeLE Mini PC connected to the internet. If the Windows can't be activated, please visit MeLE official website->Support for help.
6. Can it run Linux Ubuntu?
Yes, it supports Linux Ubuntu OS.
7. Why the 128GB eMMC Storage only displays 114GB storage on computer?
It is because of the different matrixing method between PC and HDD/SSD/eMMC.
Computer matrixing: 1KB=1024Byte, 1MB=1024KB, 1GB=1024MB.
HDD/SSD/eMMC supplier's matrixing: 1KB=1000Byte, 1MB=1000KB, 1GB=1000MB.
8. Why the 4K performance is lagging?
4K displays are affected by many factors, such as net speed, HDMI cable, monitor setting, graphic card, video decoding method, video format and video resolution. Our mini PC adopts integrated graphic, if the 4K video still lags when hardware decoding, your video might need higher processor and delicate graphic card. And we suggest you to lower the resolution to 1080p for video fluency.
