SPECIFICATIONS

Application: Desktop

Back I/O Ports: 1x RJ45

Battery Included: No

Brand Name: MACHINIST

Chipset: h55

Chipset Manufacturer: Intel

Form Factor: ATX

Hign-concerned Chemical: None

Max LAN Speed: 1000Mbps

Maximum Ram Capacity: 128 GB

Memory channel: Double

Number Of Memory Slots: 4

Number of M.2: 1

Number of PCI: 3

Number of PCIe x 1: 1

Number of PCIe x 16: 1

Number of PCIe x 4: 1

Number of SATA Ports: 4

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),4-pin +12V Power Connector

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 3.0

Package: Yes

Ports: M.2

Processor compatibility: Intel Xeon

Quality Certification: ce,ROHS

RAID Supported: No

Socket Type: LGA 2011-3

Special Features: None

Storage Interface Type: SATA 3,M.2 (NVMe)

Support Memory Type: DDR4

Support USB Type: USB 2.0

Supports M.2 SSD: 2280

Usage Scenario: Gaming,Audio & Video,Office,Video Production,others

With CPU: No

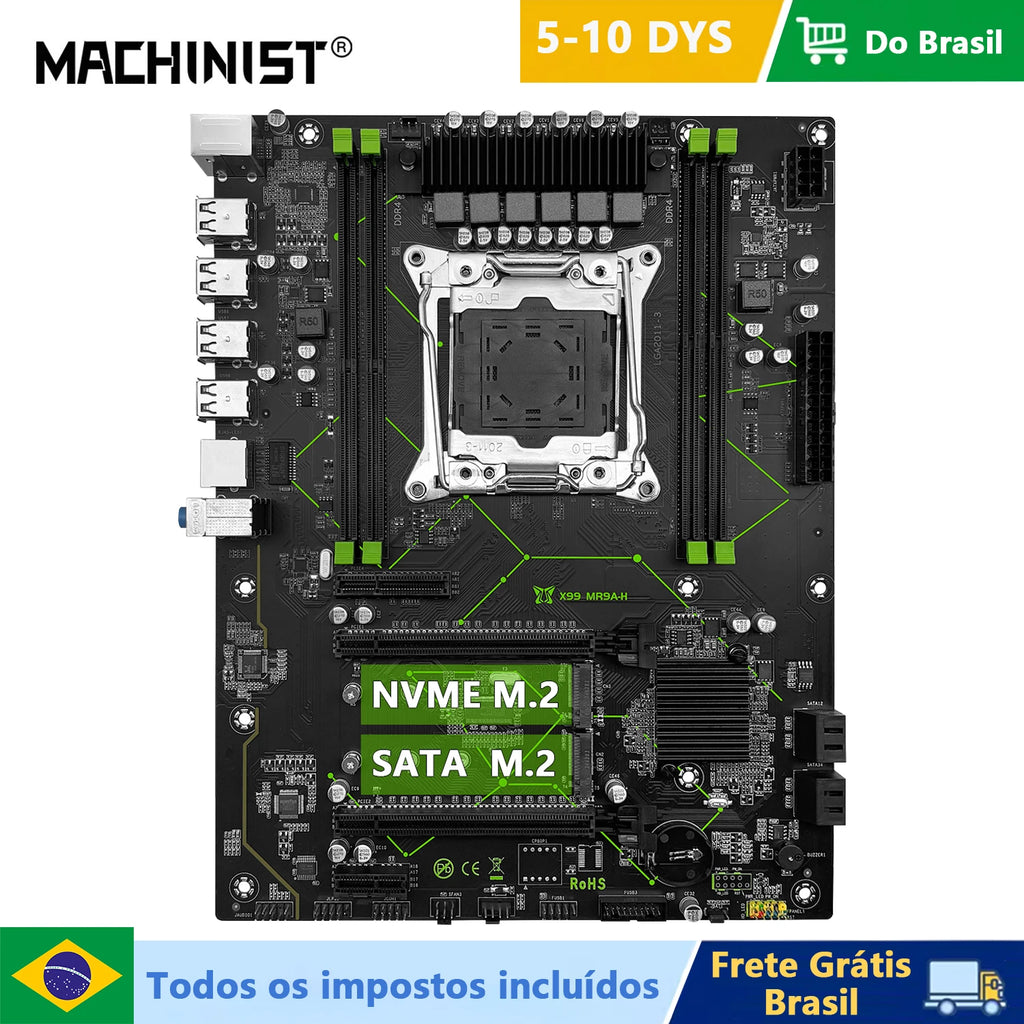

Motherboard: MACHINIST X99 MR9A-H LGA 2011-3 motherboard *1.

Complimentary accessories: I/O shield *1, SATA cable *1.

! All gifts are manually tested before sending and then packaged. Please understand if any gifts are missing!

>>Motherboard information:

Brand :MACHINIST.

Motherboard model :X99 MR9A-H.

Processor: Supports Intel LGA 2011-3-pin series processors.

Chipset: HM55/P55 Chipset.

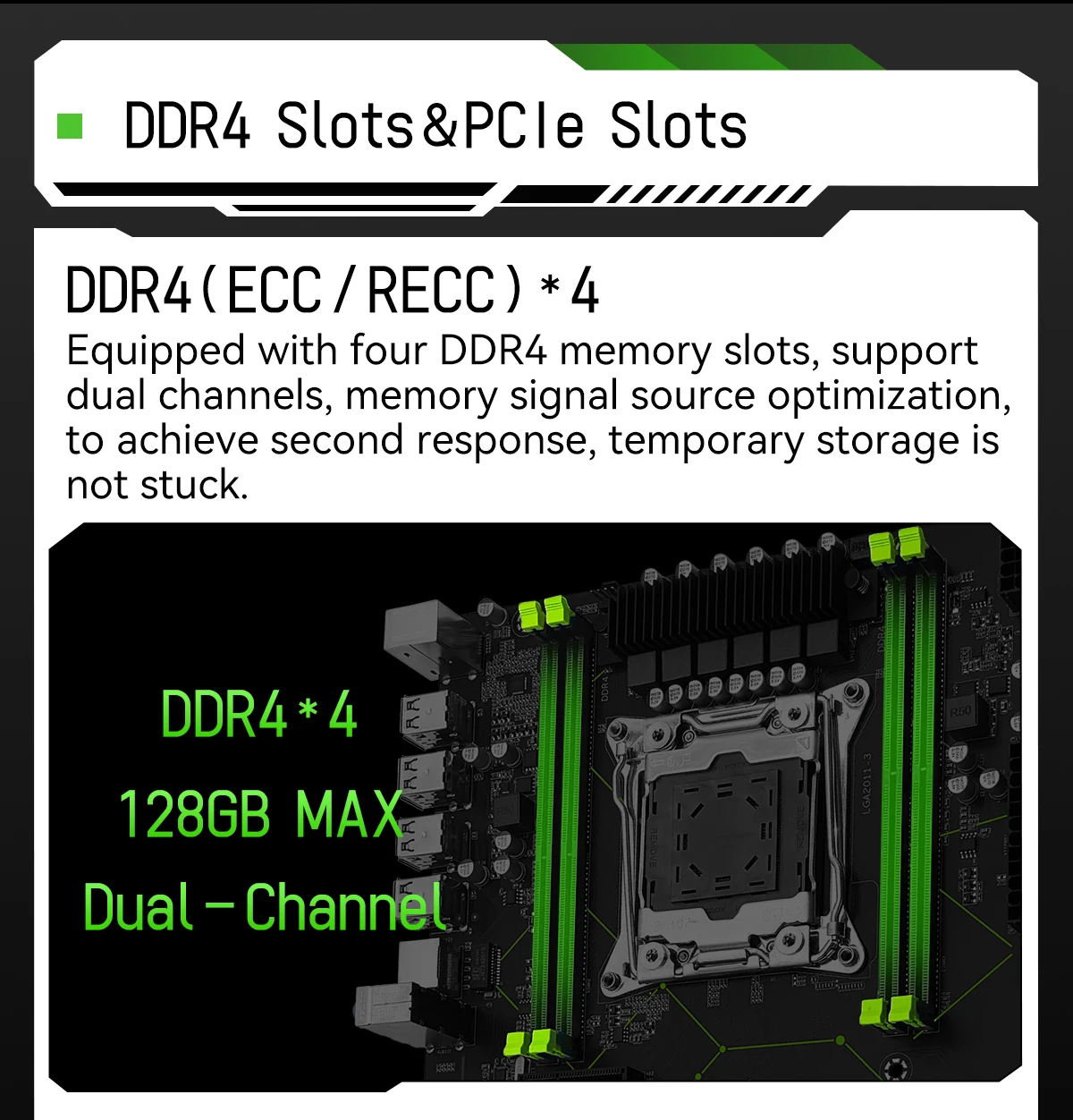

> >Memory:

Technology: Dual-channel DDR4. Supports 2133/2400/2666/3200MHZ.

The maximum capacity is 128GB (32G x 4).

Memory slot :4 * 288-pin DDR4.

Supported memory types: The memory type supports DDR4 desktop and server memory.

Please use international brands such as Samsung, Kingston, Sandee, Micron, and Hynix. Other brands may be incompatible.

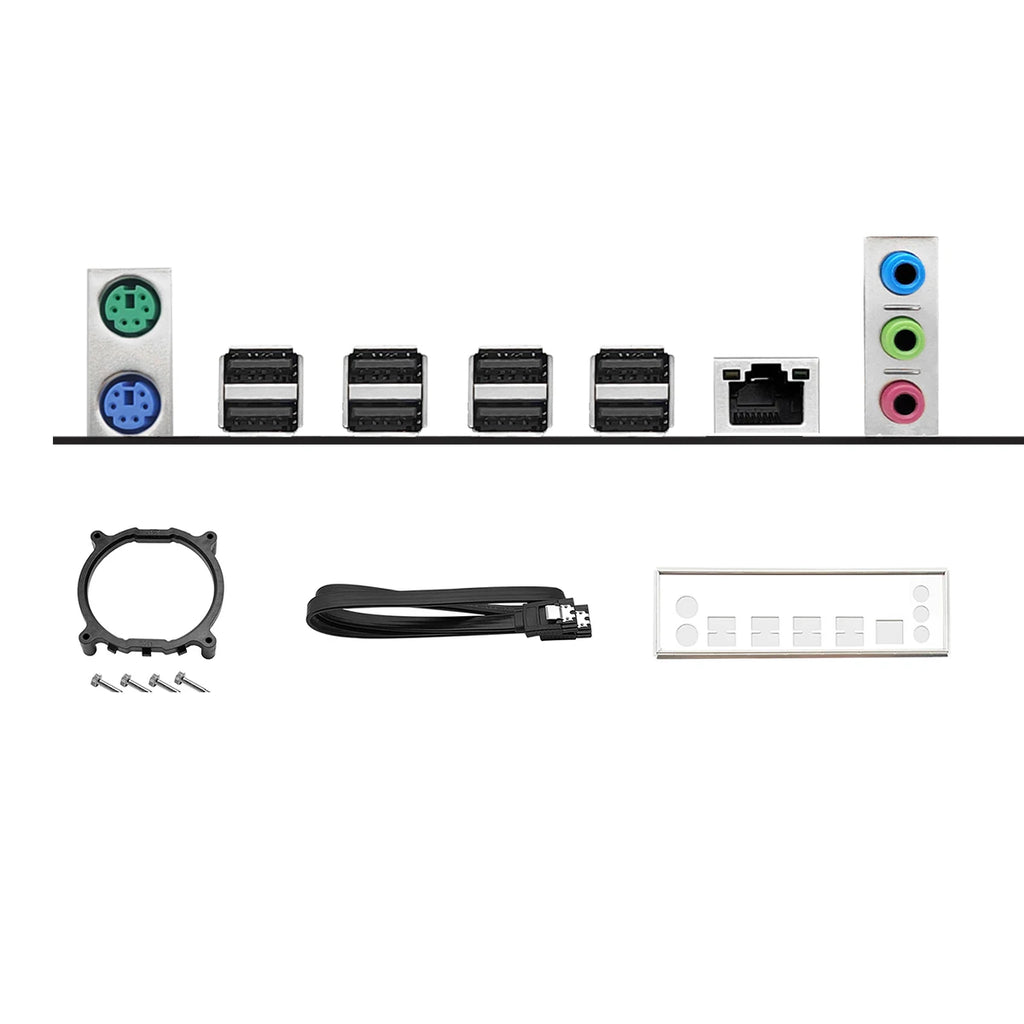

> >Post I/O:

PS/2: 1 KB interface + 1 MS interface.

USB ports: 8 USB2.0 ports.

Ethernet: 1 Gigabit network card.

Audio :1 (Mic-in, Line-out, Line-in).

> >Internal connector:

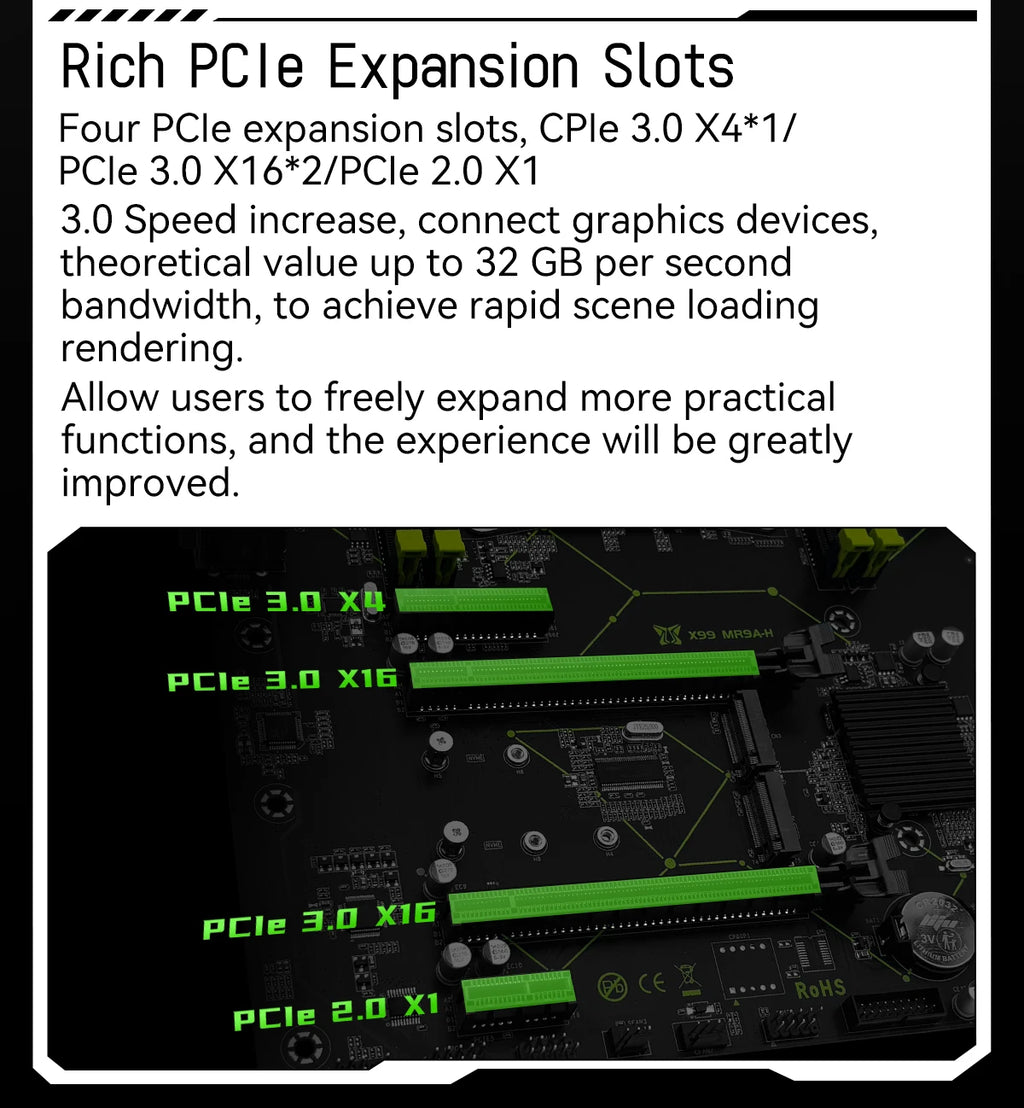

PCIe: 2 PCIe 16x, 1 PCIe 4x, 1 PCIe 1x.

F_PANEL: 1 2x5Pin.

SATA ports: 4 (4 SATA2.0 ports);

One standard 1x8-pin power socket; One standard 1x24-pin power socket;

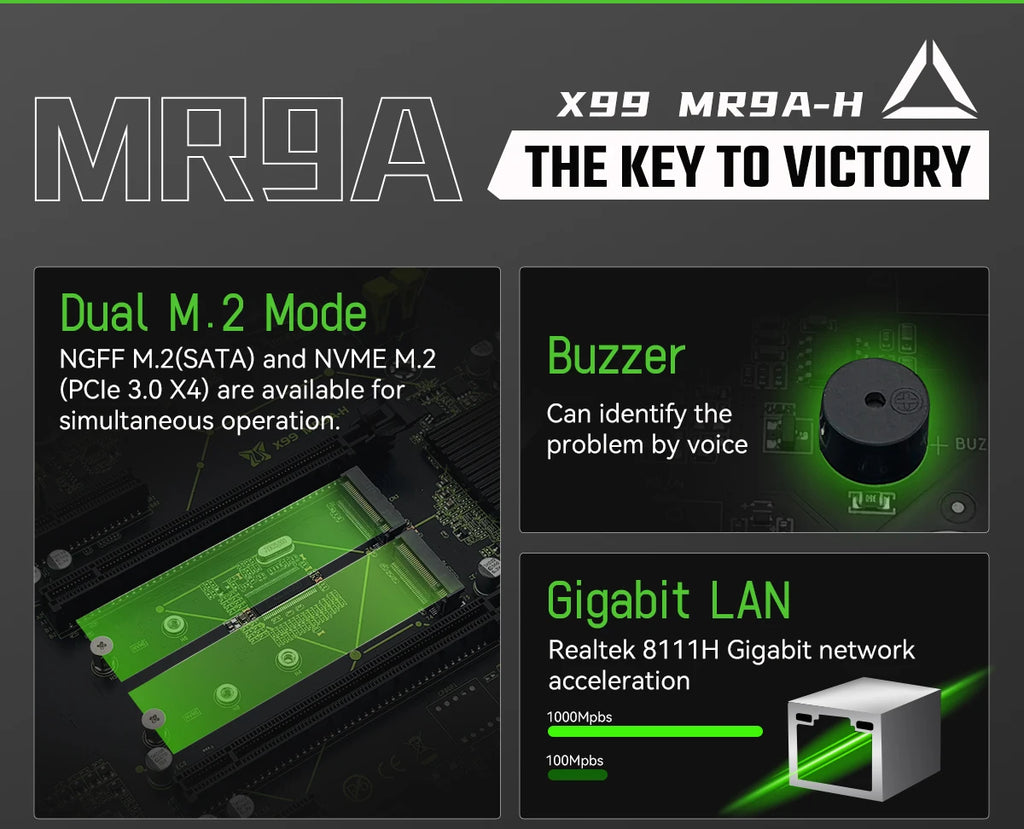

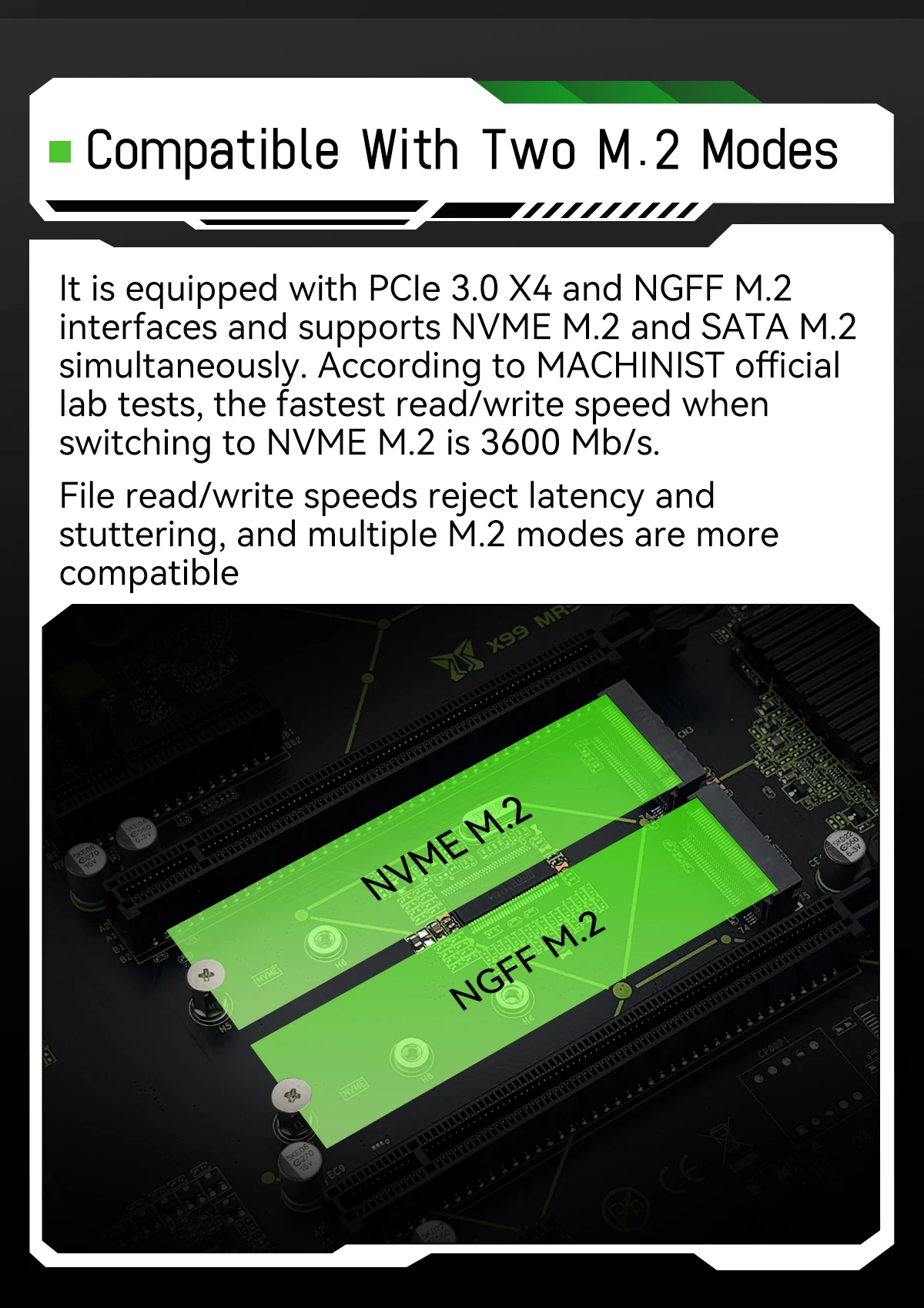

M.2 interface: 1 PCIE, 1 NGFF.

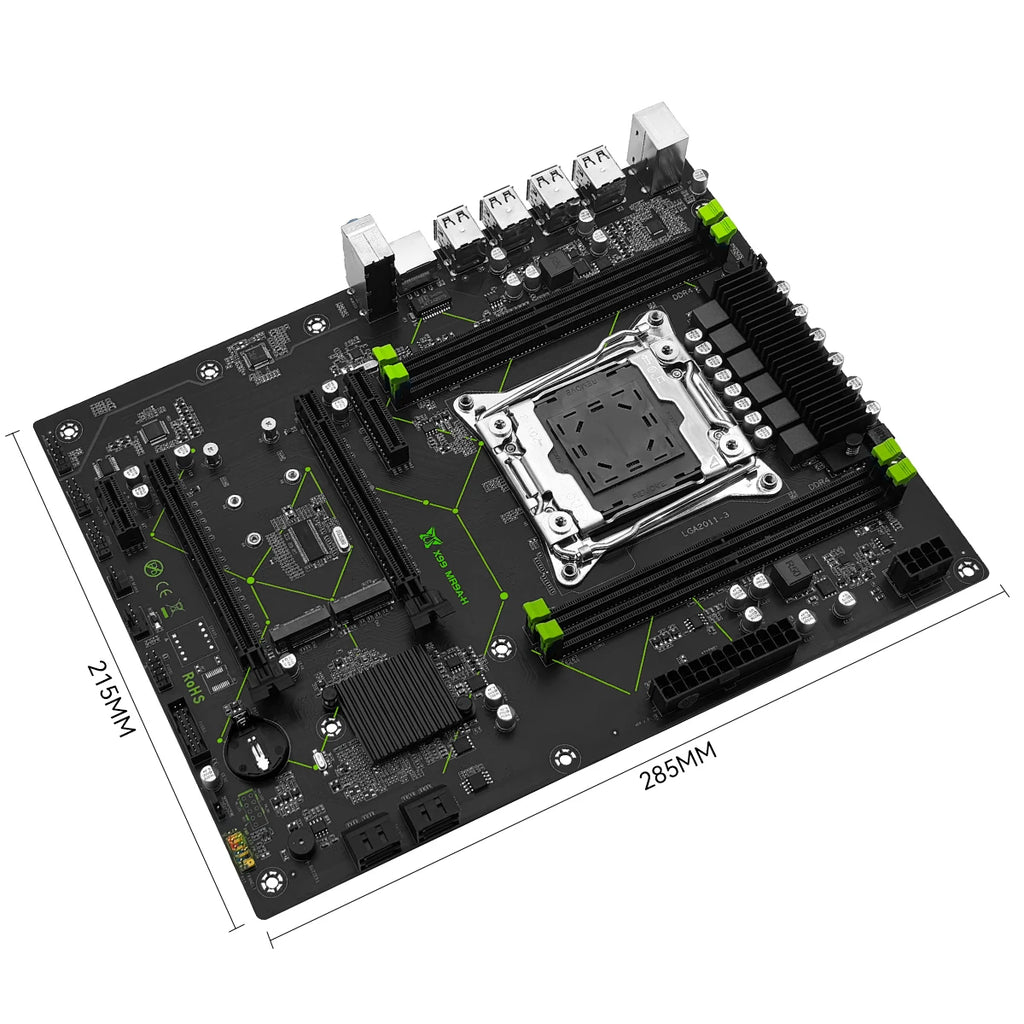

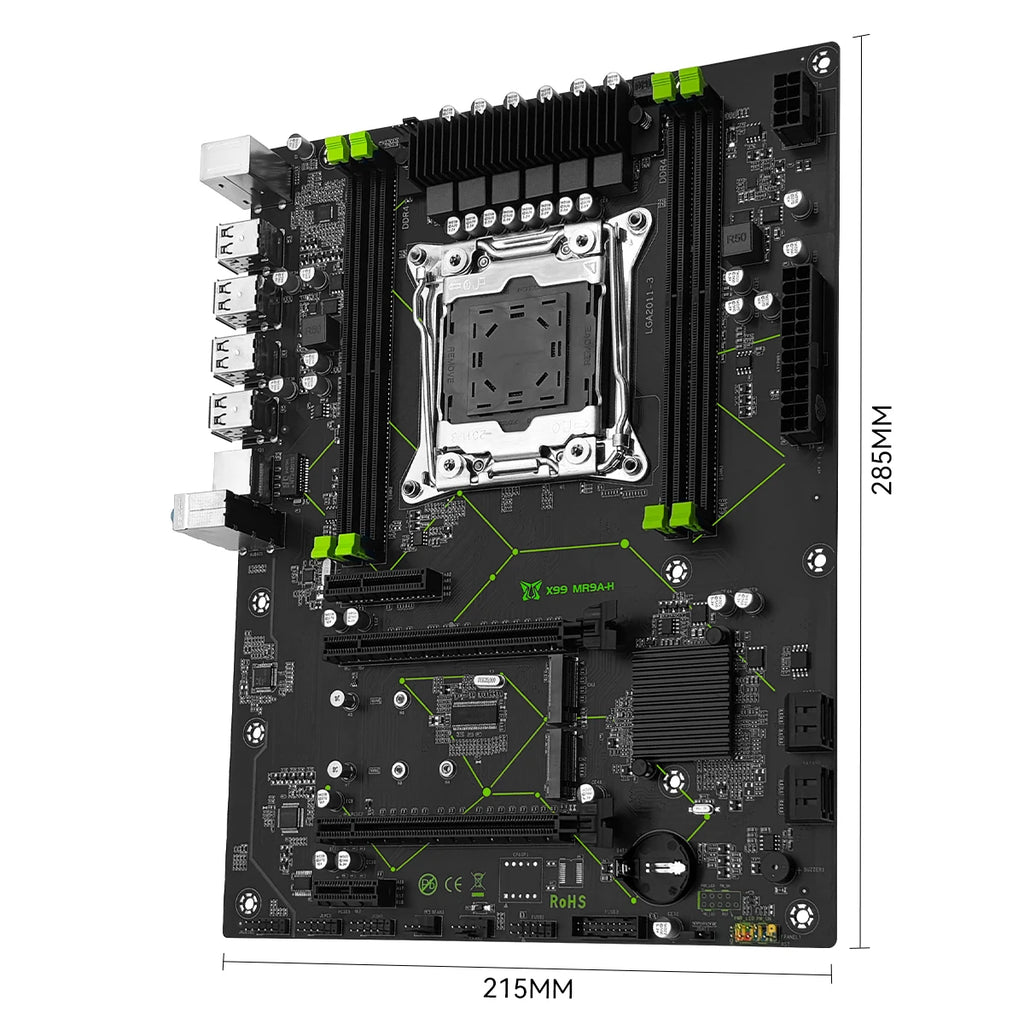

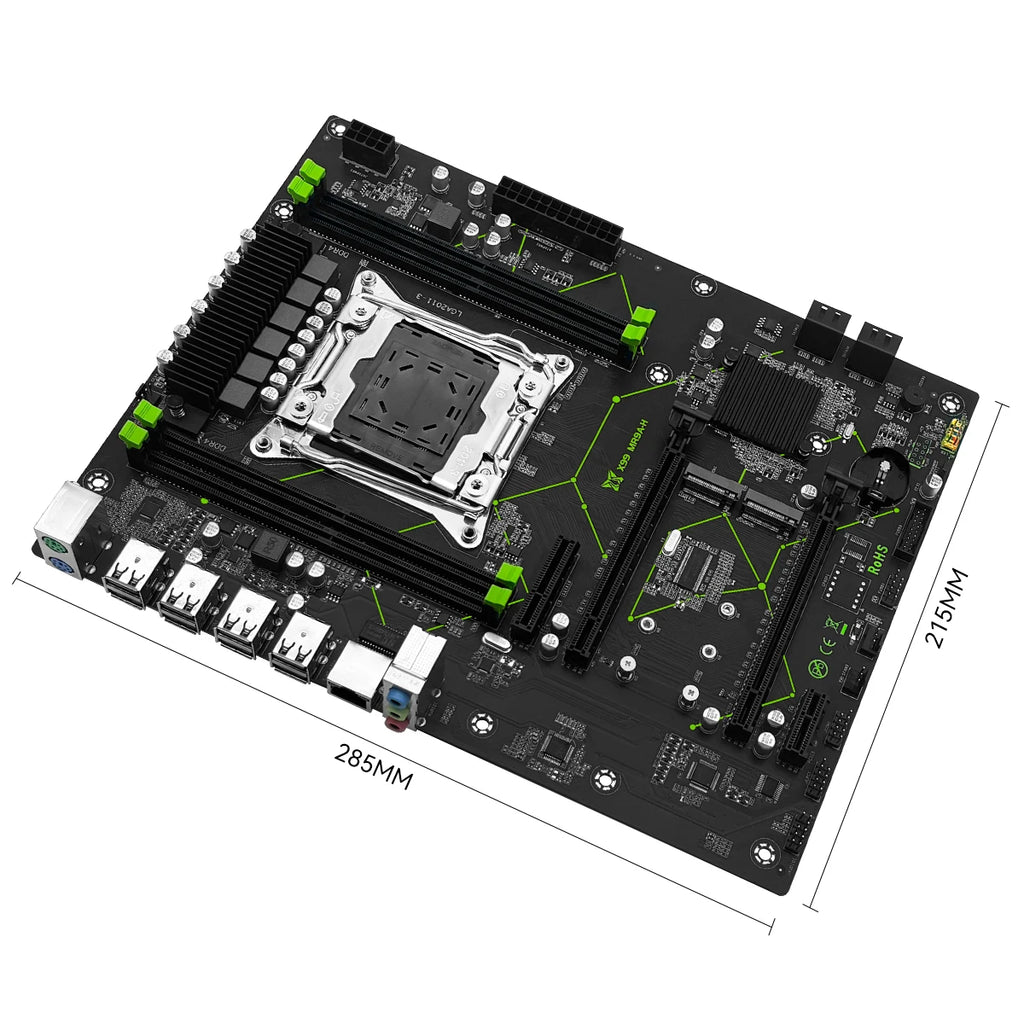

> >Overall dimensions :280mm * 215mm.

Motherboard weight (including packaging) : approximately 1.1 kilograms.> >Note:

(1) The color of the bottom plate of the trough may vary from batch to batch, but it will not affect the use of the product. The products are constantly being optimized and upgraded.

(2) Due to manual measurement, please allow an error of 1 to 3mm.

(3) Due to different displays and lighting conditions, the picture may not show the actual color of the item. Thank you for your understanding.

(4) This platform requires a powerful power supply. Please ensure that your power supply is sufficient to support this platform. (At least 500w brand power supply.

(5) The battery in the motherboard photo is not included. It will be removed before shipment due to logistics requirements.
