Processors

Intel Core i3-4005U/4010U, 2 cores 4 threads, 1.70GHz

Intel Core i3-5005U, 2 cores 4 threads, 2.0GHz

Intel Celeron 2955U, 2 cores 2 threads, 1.40GHz

Intel Core i5-4200U, 2 cores 4 threads, 1.60GHz, up to 2.60GHz

Intel Core i5-5200U, 2 cores 4 threads, 2.20GHz, up to 2.70GHz

Intel Core i7-4500U, 2 cores 4 threads, 1.80GHz, up to 3.0GHz

Memory Types

SODIMM DDR3L 1333/1600MHz,

max support to 8GB

1x slot of RAM

Storage

mSATA SSD

( Can support expand 1x 2.5inch HDD/SSD )

Graphics

i3-4005U/i5-4200U/i7-4500U: intel HD Graphics 4400

i3-5005U/i5-5200U: intel HD Graphics 5500

i3-7100U: intel UHD Graphics 610

Network Interfaces

GbE RJ45 Realtek 8111H, support WOL,PXE

Expansion

1x Mini PCI-E slot for WiFi/Bluetooth module ( half height size )

OS Support

Windows 7

Windows 8.1, Windows 10

Windows Embedded,

Windows 10 IOT,

Linux/Ubuntu

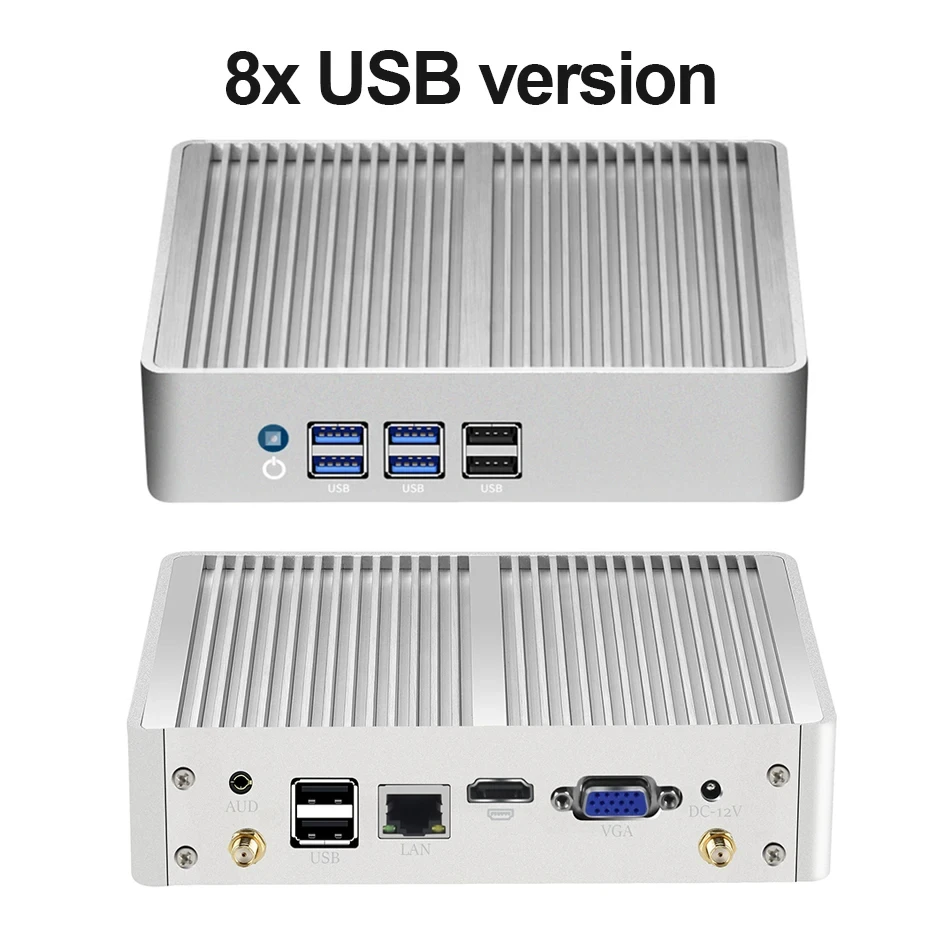

USB Ports

4x USB3.0

4x USB2.0

Wake on LAN

Yes, support

Restore on AC power loss

Yes, support

Display Port

1x VGA,

1x HDMI

Support two monitors independently display

Audio Ports

1x 3.5mm jack, support microphone IN, earphone IN

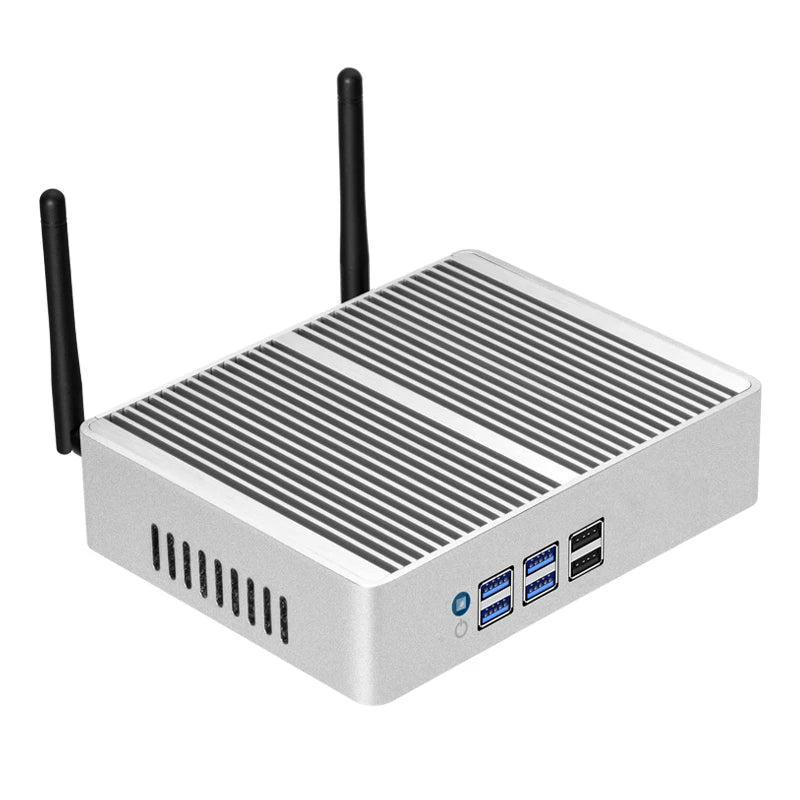

Construction

Fanless passive cooling

Case

Aluminum Case

Dimension

174x127x45mm

Netweight

1.2Kg

Operating Temperature

-20℃ to +60℃

RH

5%~90% @30℃，Non-condensing

Power Adapter

Input AC100-240V, Output DC12V-5A

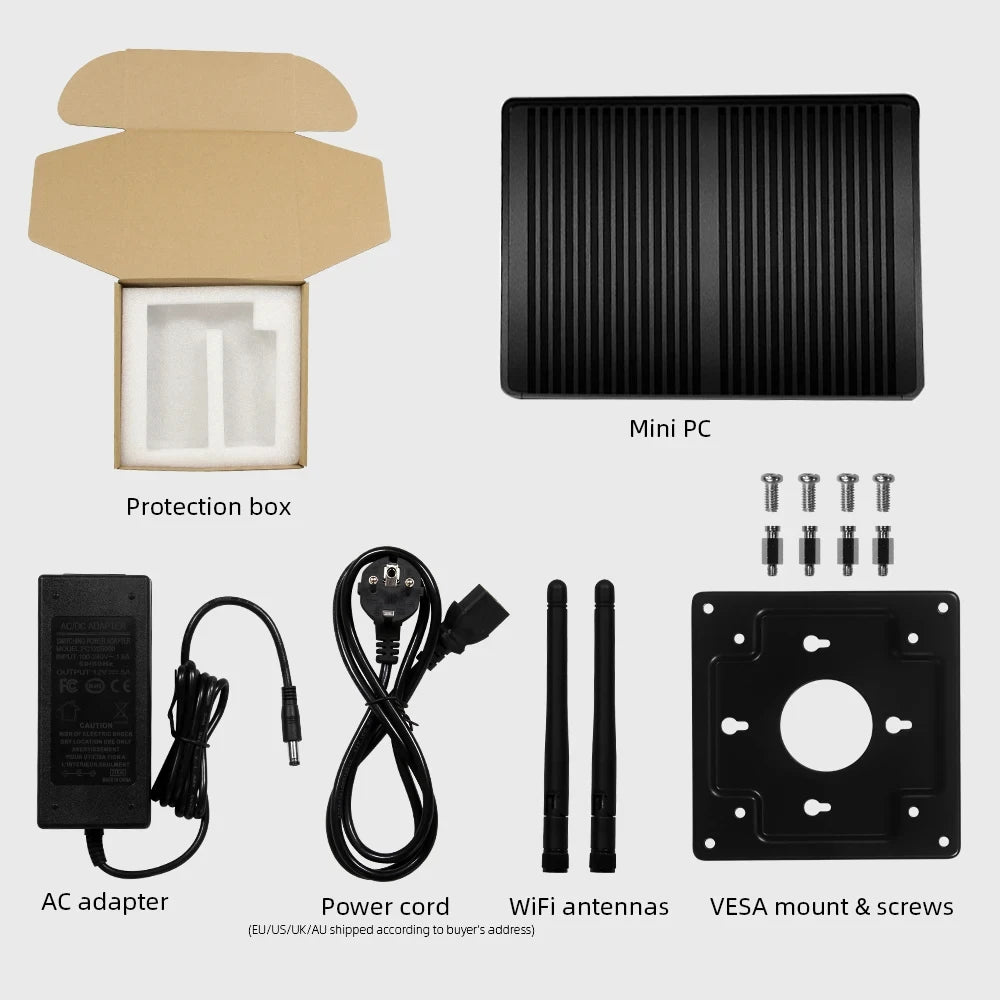

What in the Package

1x Mini PC X32

1x AC Adapter

1x Power cord ( EU AU US UK type plug shipped according to buyer’s address )

1x SATA cables

1x User manual
