$1,264.35

Color intel i7-1255U intel i5-1335U intel i7-1355U intel i3-1215U intel i5-1235U

Bundle No RAM No SSD NoWiFi 16G RAM 512G SSDWiFi 8G RAM 512G SSD WiFi 16G RAM 1TB SSD WiFi

SPECIFICATIONS

Audio: 1x Earphone IN, 1x Microphone

Brand Name: XCY

COM Ports: 2 x DB9 RS232

Certification: CE,FCC,RoHS

Dimension: 193.9 x 127 x 57.2 mm

Display: 1 x HDMI2.0, 1 x VGA

Ethernet: 2 x GbE RJ45 Realtek 8111H, support PXE, WOL

Expasnion: 1x M.2 slot for WiFi/4G LTE module

Graphics Card Type: Integrated Card

Hard Drive Capacity: 512GB

Hard Drive Type: 1x M.2 NVME SSD 2280

Hign-concerned Chemical: None

Memory Capacity: ≥ 4GB

Memory Slot: x1, max support 32GB DDR5

Memory Type: SODIMM DDR5

Model Number: X58

OS Support: Windows 10/11, LINUX

Origin: Mainland China

Power Adapter: AC100-240V to DC19V-4.7A

Processor Brand: Intel

Processor Model: i3-1215U, i5-1235U, i7-1255U, i7-1355U,i5-1335U

SIM Slot: 1x SIM slot on-board

Type: Mini Desktop,Mini PC

USB Ports: 4 x USB3.0, 4 x USB2.0

Use: Commercial

CPU options	intel Core i5-1335U, 10 cores 12 threads, 12M Cache, up to 4.60GHz intel Core i7-1355U, 10 cores 12 threads, 12M Cache, up to 5.0GHz intel Core i3-1215U, 6 cores 8 threads, 10M Cache, up to 4.40GHz intel Core i5-1235U, 10 cores 12 threads, 12M Cache, up to 4.40GHz intel Core i7-1255U, 10 cores 12 threads, 12M Cahce, up to 4.60GHz
Memory Types	1x SODIMM DDR5, max support 32GB
Hard Drive Types	Support 1x M.2 NVME SSD 2280 support 1x 2.5 inch SATA
Graphics	Processor Graphics
Ethernet	2 x GbE RJ45 Realtek 8111H, support Wake on LAN, PXE
USB	4 x USB3.0, 4 x USB2.0
COM	2 x DB9 RS232
Display	1 x HDMI2.0 ( max 4096x2034@60Hz) 1 x VGA ( max 1920x1080@60Hz ) Support independently video output
Audio	1x Earphone IN, 1x Microphone
Wireless	1x M.2 slot for WiFi/BT/4G LTE 1x SIM card slot on-board
OS Support	Windows 10/11 Ubuntu LINUX

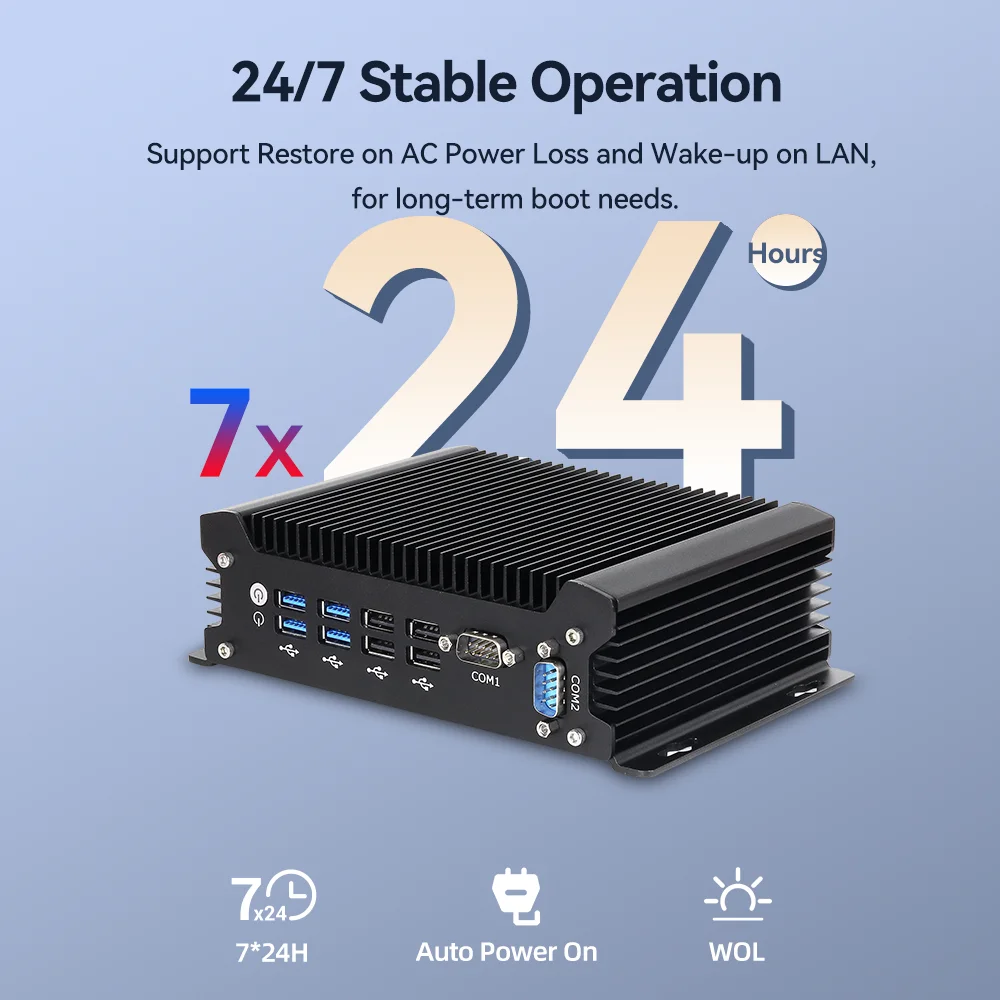

Others	Support Wake on LAN, PXE, Watchdog, Auto power on after power loss
Working Voltage	DC19V-4.7A
Dimension	193.9 x 127 x 57.2 mm
Netweight	1KG
Storage Temperature	-30℃ to +70℃
Working Temperature	-20℃ to +60℃
Relative Humidity	10%~90% @30℃，non-condensing
Cooling	Fanless passive cooling
Package	1x Mini PC 1x AC Adapter 1x Power Cord 1x User guide Please NOTE: mini PC comes without 4G LTE module installed, please contact us if you need to add to mini PC.

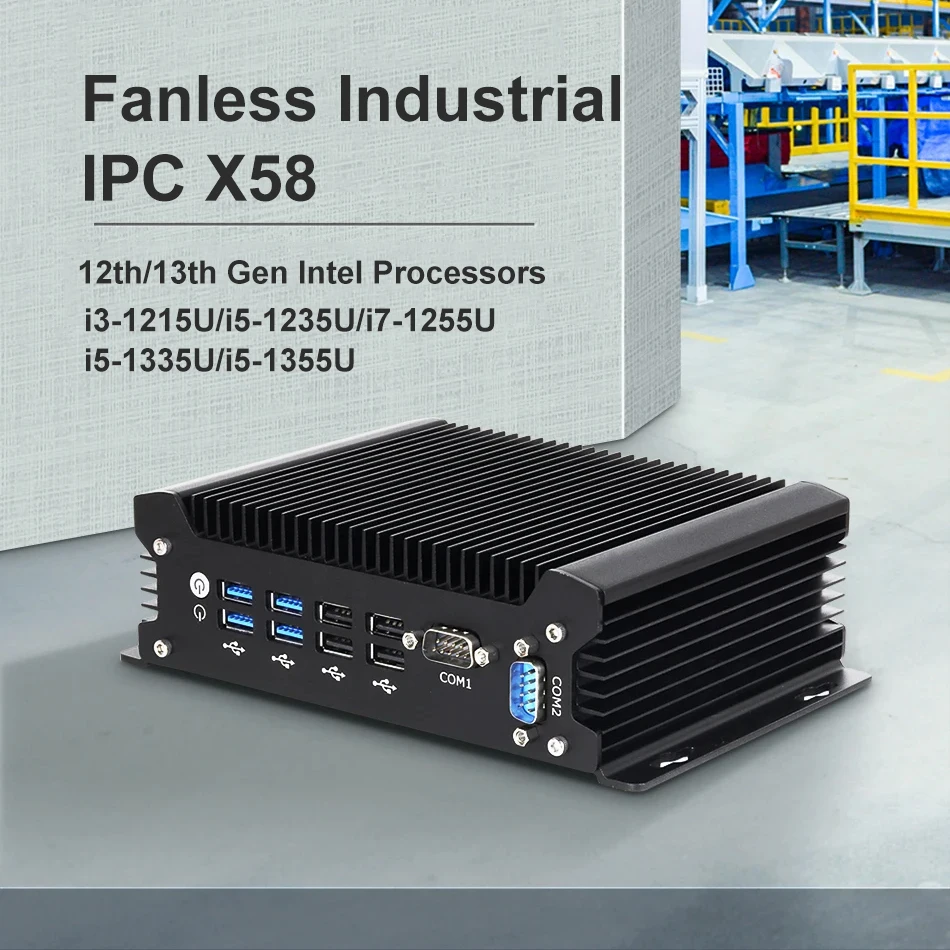

Fanless Industrial Mini PC 13th Intel Core i7 1355U 1255U DDR5 M.2 SSD 2x COM RS232 2x LAN 8x USB WiFi SIM 4G LTE Windows Linux
