SPECIFICATIONS

Application: Desktop

Audio Channels: 7.1

Back I/O Ports: 1x RJ45,VGA (D-Sub),PS/2 Combo,HDMI 1.1

Brand Name: Wovibo

Chipset: Intel B75

Chipset Manufacturer: Intel

Feature1: All solid capacitor

Feature2: SATA III ,USB 3.0

Feature3: M.2 NVME SSD Slot

Form Factor: Mini-ATX

Max LAN Speed: 1000Mbps

Maximum Ram Capacity: 16 GB

Memory channel: Double

Memory frequency support: 1333,1600Mhz

Motherboard dimension: 215*168mm

Number Of Memory Slots: 2

Number of M.2: 1

Number of PCI: 1

Number of PCIe x 16: 1

Number of SATA Ports: 4

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector,USB 3.0 Connector,USB 2.0 Connector

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 3.0

Package: Yes

Processor compatibility: Intel Core i7,Intel Core i3,Intel core i5

Quality Certification: None

RAID Supported: No

Socket Type: LGA 1155

Special Features: None

Storage Interface Type: SATA 3,M.2 (NVMe)

Support Memory Type: DDR3

Support USB Type: USB 2.0,USB 3.0

Supports M.2 SSD: 2280

Usage Scenario: Gaming,Household,Office,Design

With CPU: No

Note Before you buy

1. Desktop Motherboard .Not supports ECC Server RAM. don't use Different Brand Ram on motherboard .
2.Because the memory chip is different. Do not use memory modules of different brands , don't use Different Brand Ram to motherboard .
3.Due to different production batches. The appearance of the product may be slightly modified. But the performance will not change, if you mind, please do not buy it.
4.We will remove the battery from Motherboard before shipment .Due to Some Logistics not supports battery.

5:The color of the bottom plate of the slot may vary from batch to batch, but it will not affect the use of the product. The product is constantly optimized and upgraded.

6.1155 is the old platform chip. It is not supported to modify the fan speed.

Description:

1.100% brand new and high quality!

2.High compatibility for a higher experience.
3.High Speed Interface : USB 3.0, SATA III.
4.All solid capacitors, fine workmanship, professional stability.

Specifications:
Main Chipset: for Intel B75 ,Z77,Q77, or other B75 Series Chipest, send out by ramdomly

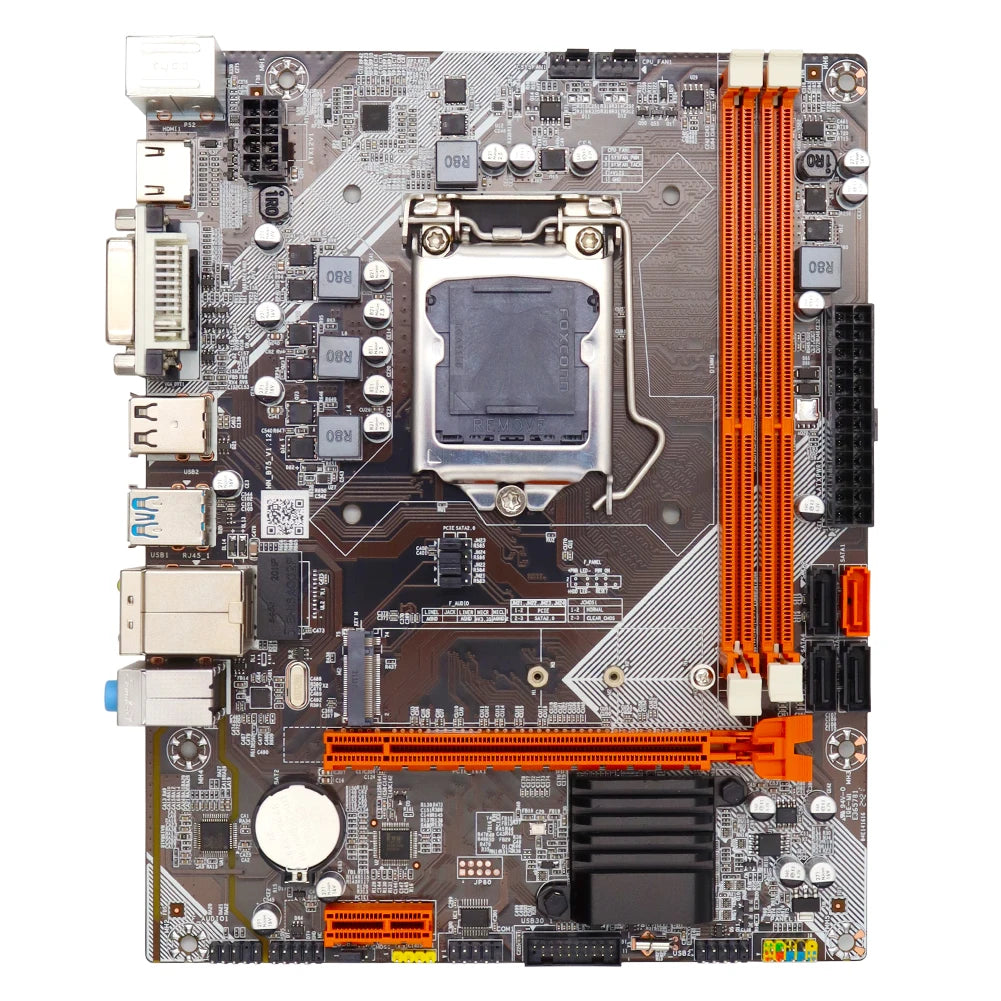

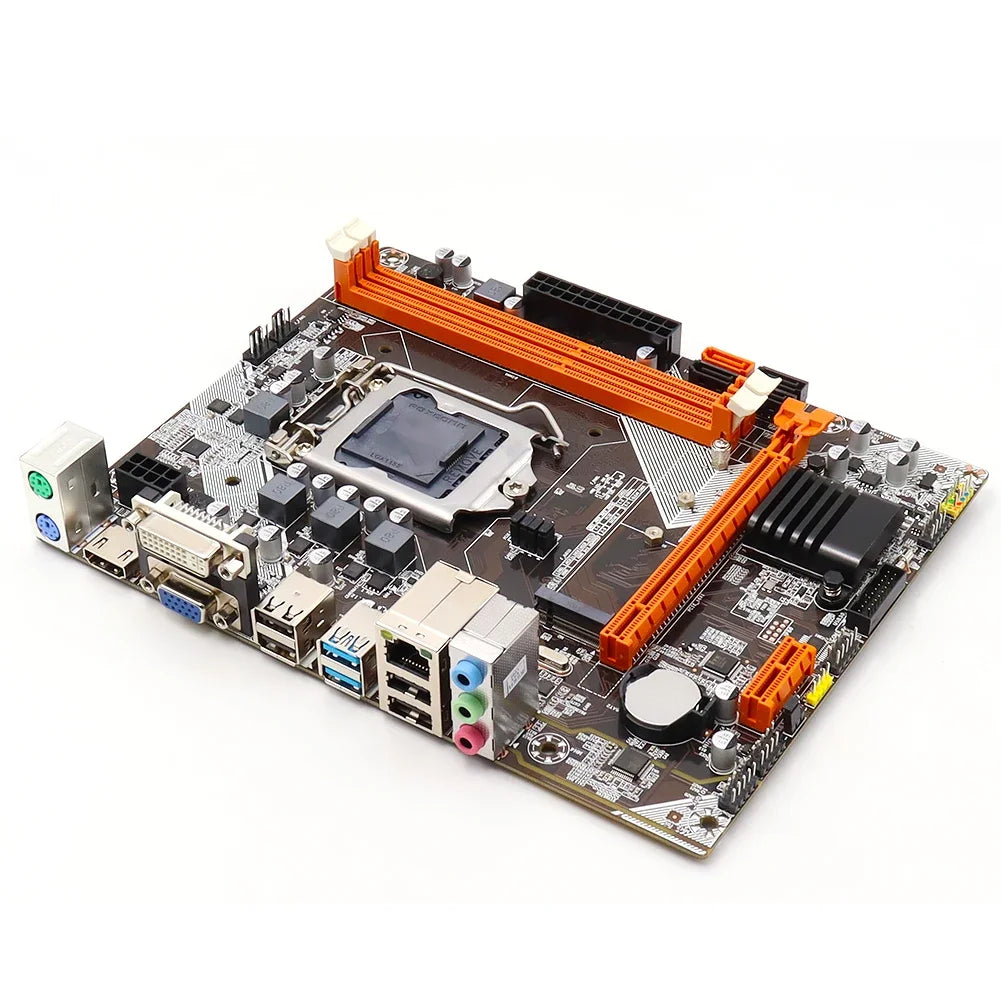

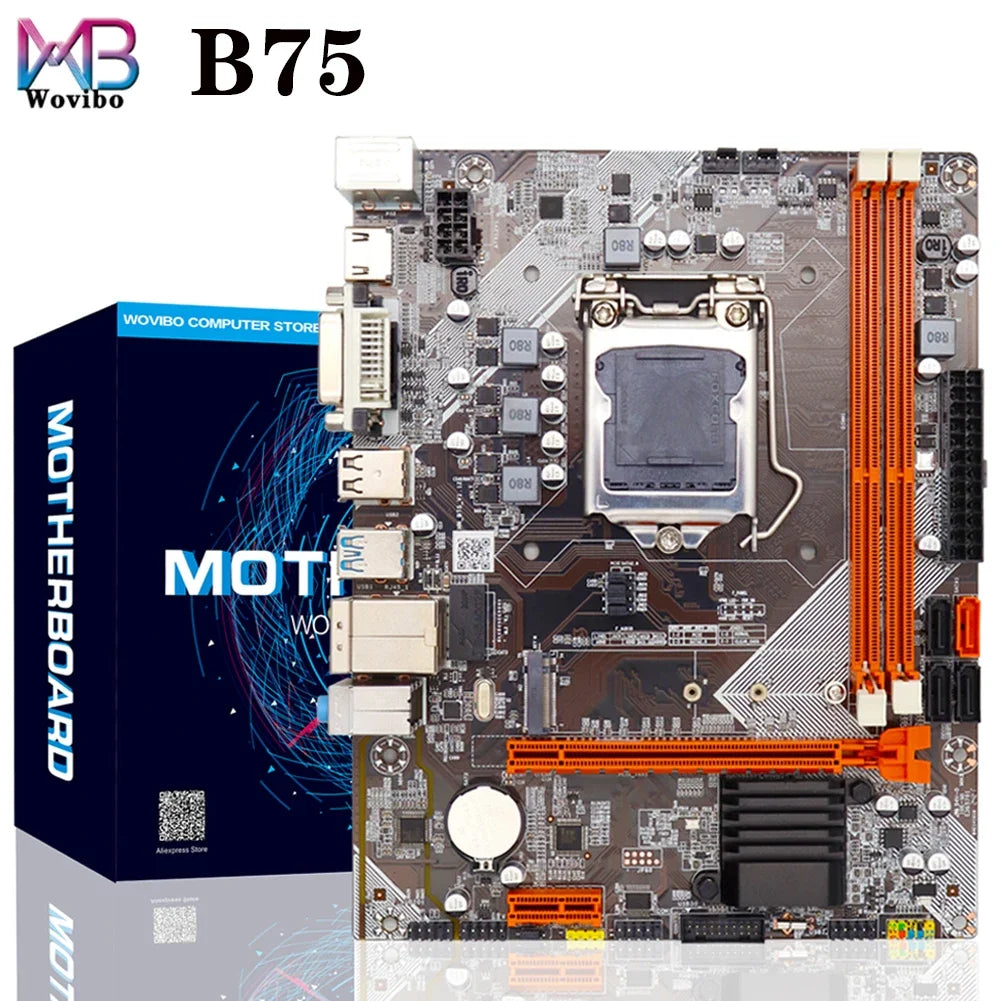

Product name: Motherboard

CPU socket: LGA 1155
Structure: M-ATX
Motherboard Size: 215*168mm
CPU supported: For Intel series with LGA1155 socket

Memory socket: 2 * DDR3

Support CPU type: I3 I5 I7 Xeon LGA 1155 Socket

Graphics card: Integrated graphics
Hard disk interface: SATA3.0

Memory channel: Dual channel

Maximum memory capacity: 16G
Memory frequency support:1333,1600Mhz

Package Included:

1 PC* Motherboard+ 1 PC SATA Cable + 1 PC Back Plate
