SPECIFICATIONS

AMD Model: AMD FX-Series FX-8350

Application: Desktop

Brand Name: AMD

Chip Process: 32 Nanometers

Cooling system: No

Default TDP / TDP: 125

GPU-built: Yes

Hign-concerned Chemical: None

L2 Cache Capacity: 8 MB

L3 Cache Capacity: 8 MB

Launch Date: 2011

Number OF Therads: 8

Number of Cores: Eight Core

Origin: MY(Origin)

PCIe VERSION: PCIe 3.0

Package: No

Processor Type: FX-Series

Socket Type: Socket AM3 +

Support Chipset Models: AMD 780L/760G

Support Memory Channels: 2

Support Memory Type: DDR3

Type: Octa Core

Unlocked: No

Usage Scenario: others

Note:

(Used product) - (one-year warranty) (strict testing) - (sent within 48 hours)-（Unable to specify production area）

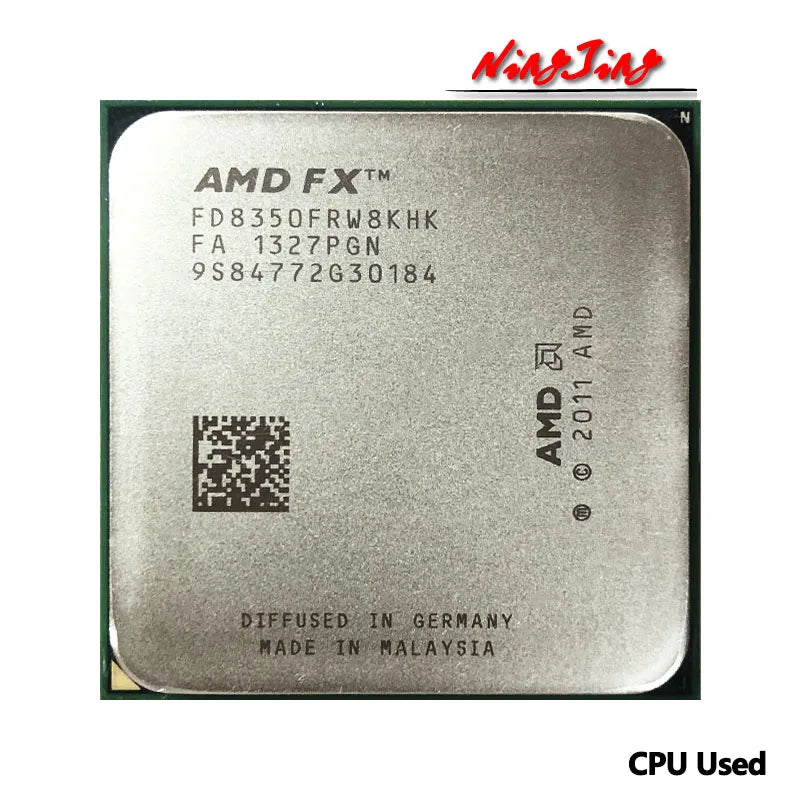

AMD FX-8350 specifications

General information
Type	CPU / Microprocessor
Market segment	Desktop
Family	AMD FX-Series
Model number ?	FX-8350
CPU part numbers	FD8350FRW8KHK is an OEM/tray microprocessor FD8350FRHKBOX is a boxed microprocessor with fan and heatsink FD8350FRHKHBX is a boxed microprocessor with low-noise fan and heatsink (Wraith cooler)
Frequency ?	4000 MHz
Turbo frequency	4200 MHz
Boosted P states [1]	#1: 4200 MHz, 1.425V #2: 4100 MHz, 1.4V
Bus speed ?	One 2600 MHz 16-bit HyperTransport link
Package	940-pin organic micro Pin Grid Array (UOC940) Pb-free
Socket	Socket AM3+
Weight [1]	1.4oz / 38.3g (CPU) 1lb 5.3oz / 604.6g (box)
Fan/heatsink	AV-Z7UH40Q001
Introduction date	October 23, 2012
Price at introduction	$195
Architecture / Microarchitecture
Microarchitecture	Piledriver
Platform	Volan
Processor core ?	Vishera
Core stepping ?	OR-C0
CPUID	600F20
Manufacturing process	0.032 micron
Data width	64 bit
The number of CPU cores	8
The number of threads	8
Floating Point Unit	Integrated
Level 1 cache size ?	4 x 64 KB 2-way set associative shared instruction caches 8 x 16 KB 4-way set associative data caches
Level 2 cache size ?	4 x 2 MB 16-way set associative shared exclusive caches
Level 3 cache size	8 MB 64-way set associative shared cache
Multiprocessing	Uniprocessor
Features	MMX instructions Extensions to MMX SSE / Streaming SIMD Extensions SSE2 / Streaming SIMD Extensions 2 SSE3 / Streaming SIMD Extensions 3 SSSE3 / Supplemental Streaming SIMD Extensions 3 SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4 ? SSE4a ? AES / Advanced Encryption Standard instructions AVX / Advanced Vector Extensions BMI1 / Bit Manipulation instructions 1 FMA3 / 3-operand Fused Multiply-Add instructions FMA4 / 4-operand Fused Multiply-Add instructions F16C / 16-bit Floating-Point conversion instructions TBM / Trailing Bit Manipulation instructions XOP / eXtended Operations instructions AMD64 / AMD 64-bit technology ? AMD-V / AMD Virtualization technology EVP / Enhanced Virus Protection ? Turbo Core 3.0 technology
Low power features	PowerNow!
Low power P states [1]	#1: 3400 MHz, 1.225V #2: 2800 MHz, 1.125V #3: 2100 MHz, 1V #4: 1400 MHz, 0.875V
Integrated peripherals / components
Integrated graphics	None
Memory controller	The number of controllers: 1 Memory channels: 2 Supported memory: DDR3-1866 Maximum memory bandwidth (GB/s): 29.9
Other peripherals	HyperTransport technology ?
Electrical / Thermal parameters
Maximum operating temperature ?	61°C
Thermal Design Power ?	125 Watt
