SPECIFICATIONS

Accessory Type: Extension Board

Battery Included: No

Brand Name: 52Pi

Compatible With: Raspberry Pi 4B

Hign-concerned Chemical: None

Origin: Mainland China

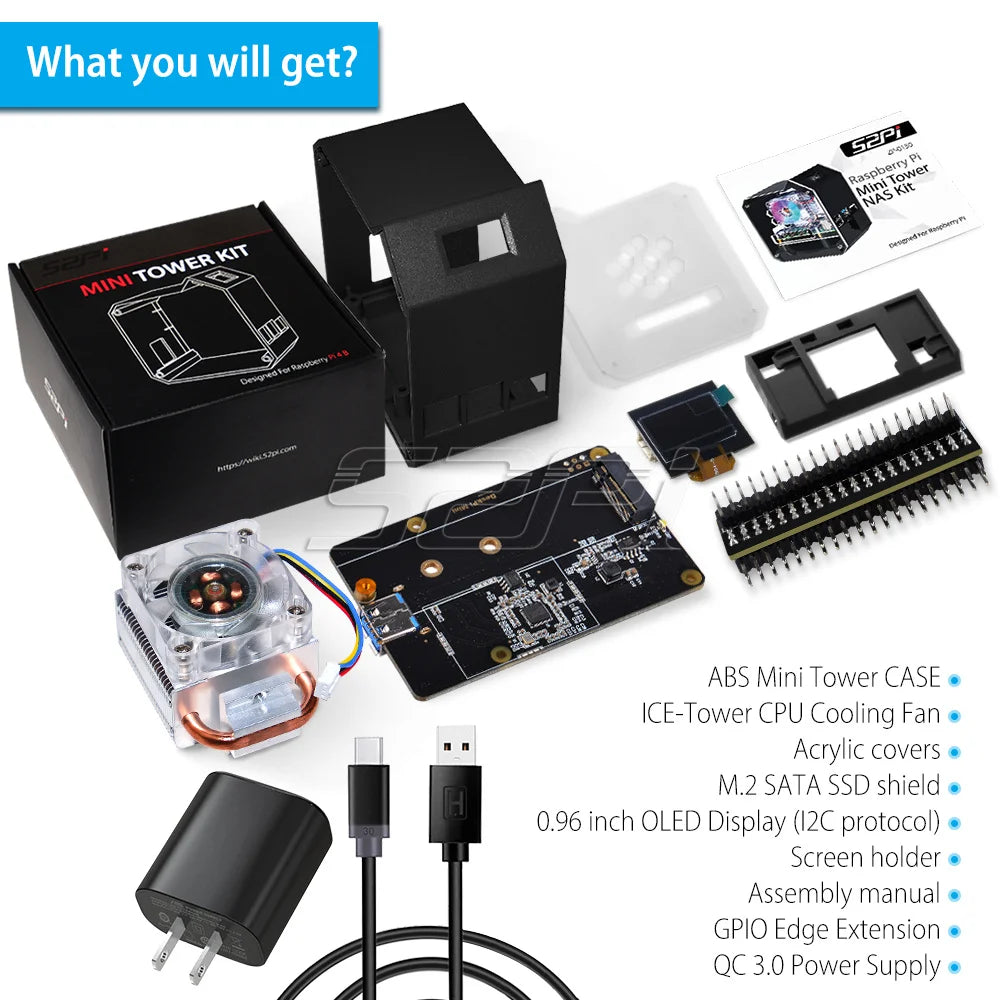

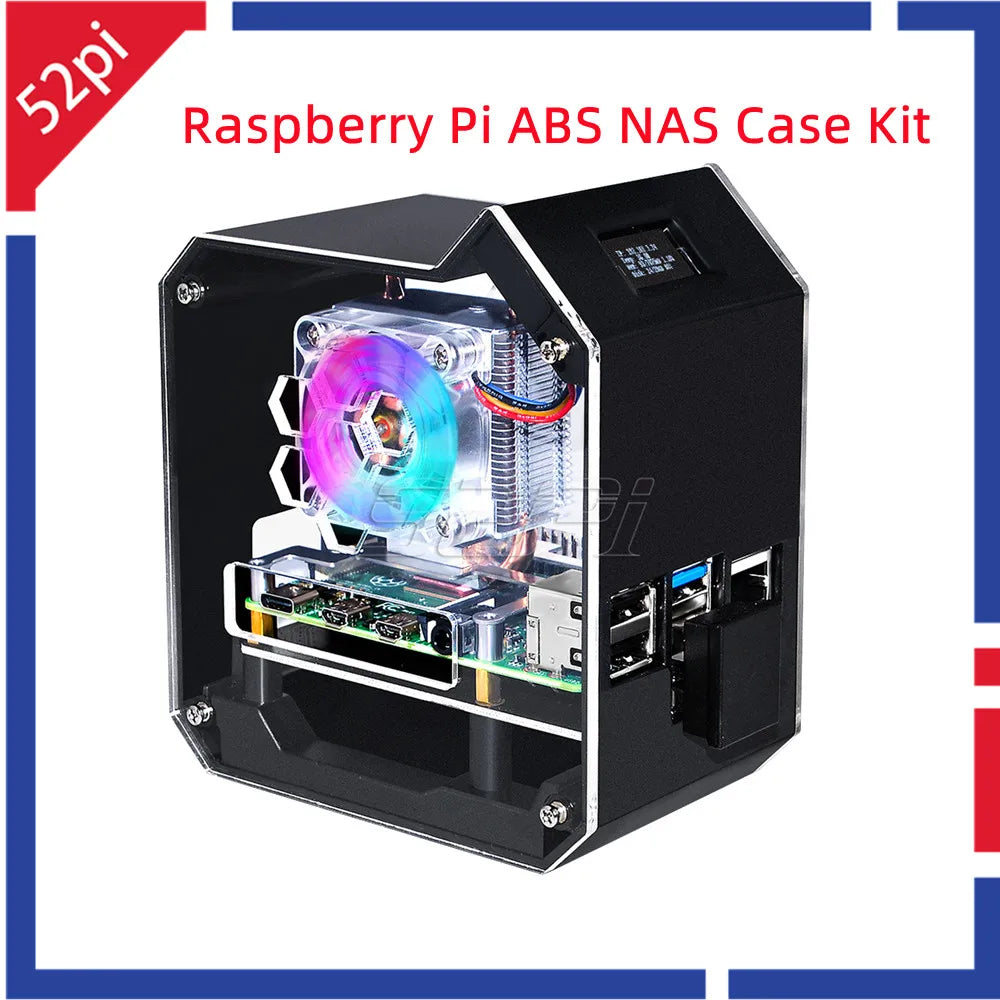

ABS Mini Tower NAS Kit with Ice Tower 0.96 Screen Dispaly for Raspberry Pi 4B

[Description]:

This kit contains an M.2 SATA SSD expansion board which can expand the mass storage for your Raspberry Pi.The case is made of ABS material,This kit turns your Raspberry Pi into a mobile mini-host.

NOTE: The RGB light in Fan and mood light will not light up unless installed driver, and OLED will not display any information untill you have enabled it !!! Please read the manual carefully and follow the steps to enable it.

Please purchase M.2 SATA SSD 2280 mass storage device, It dose NOT support NVME SSD!!!

[Features]:

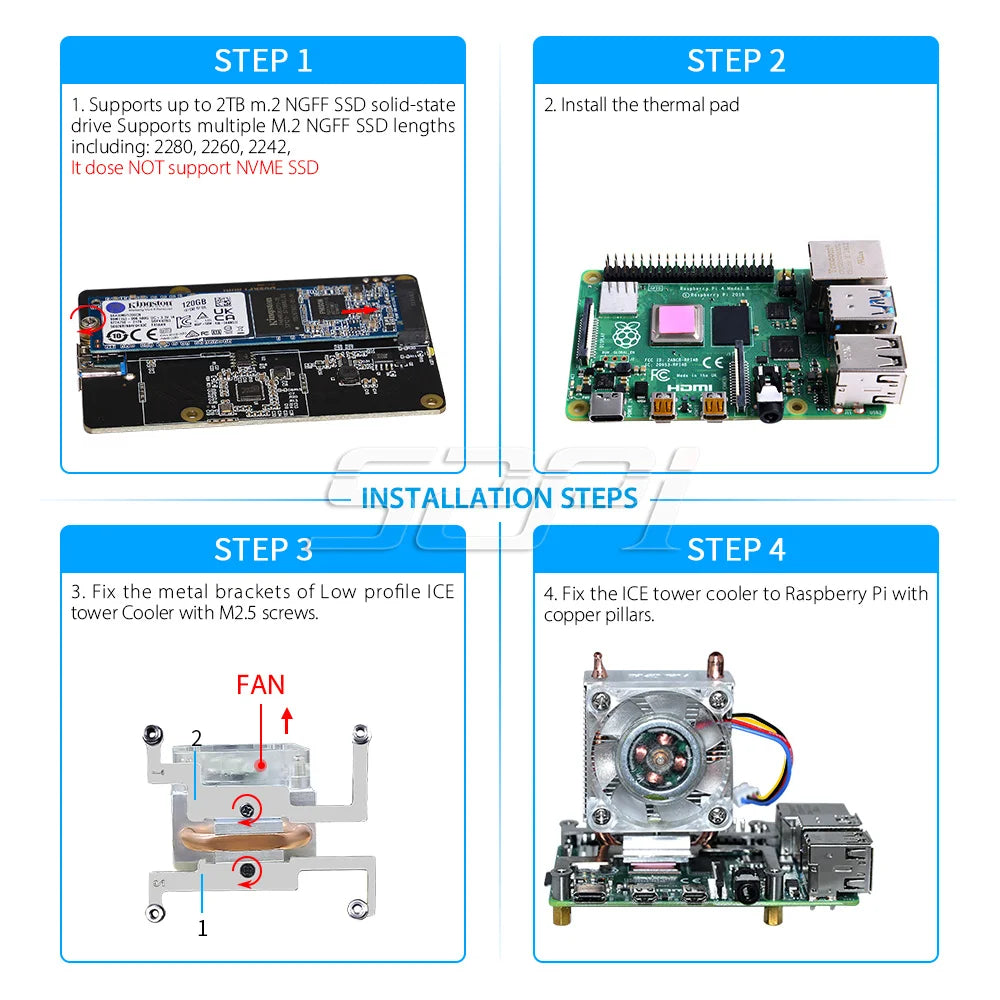

M.2 SATA SSD B-Key 2280mass storage adapter board
Supports up to 2TB M2. SATA SSD solid-state drive
Multiple ASMedia Chip Compatibility:
ASMedia Technology ASM1051E SATA 6Gb/s bridge,
ASM1053E SATA 6Gb/s bridge
ASM1153 SATA 3Gb/s bridge
ASM1153E SATA 6Gb/s bridge
Supports Mass Storage Driver: UAS
Supports LED indicator for disk activity status
Supports booting up from SSD method.
USB3.0 connector (Data Transfer)

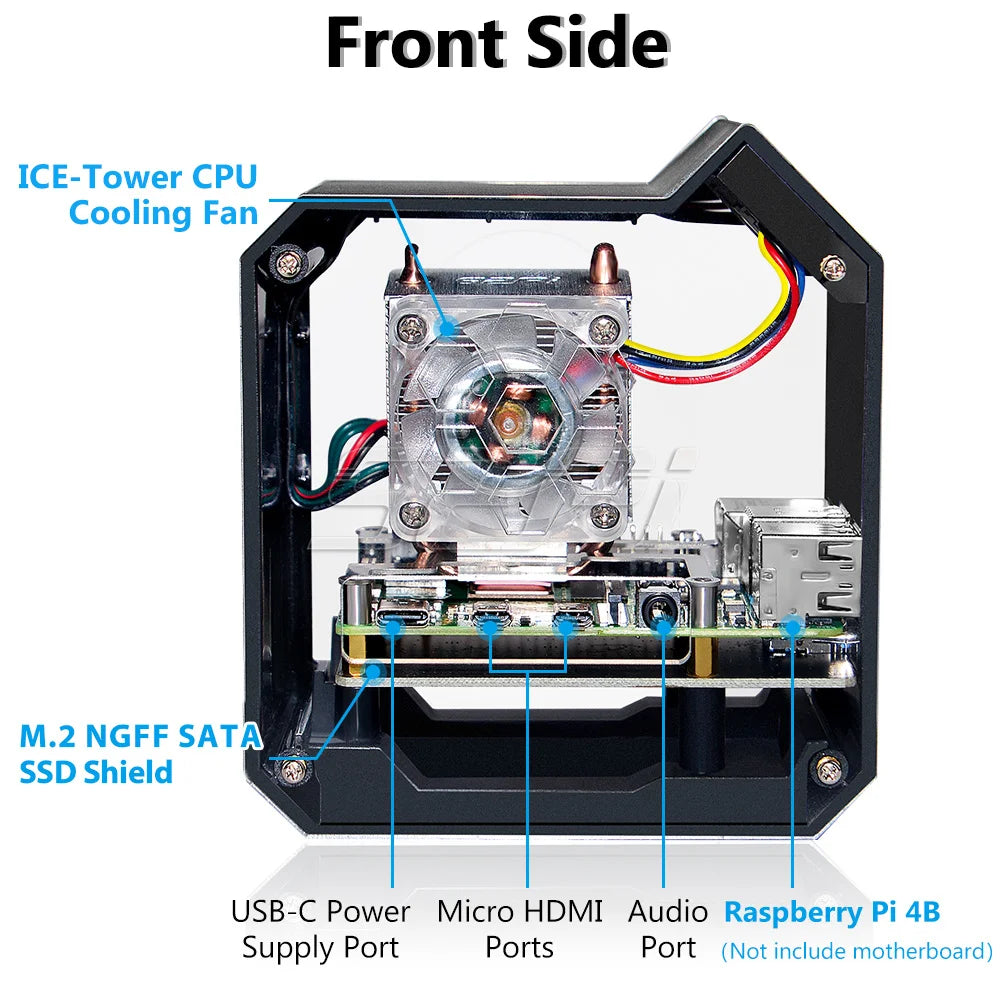

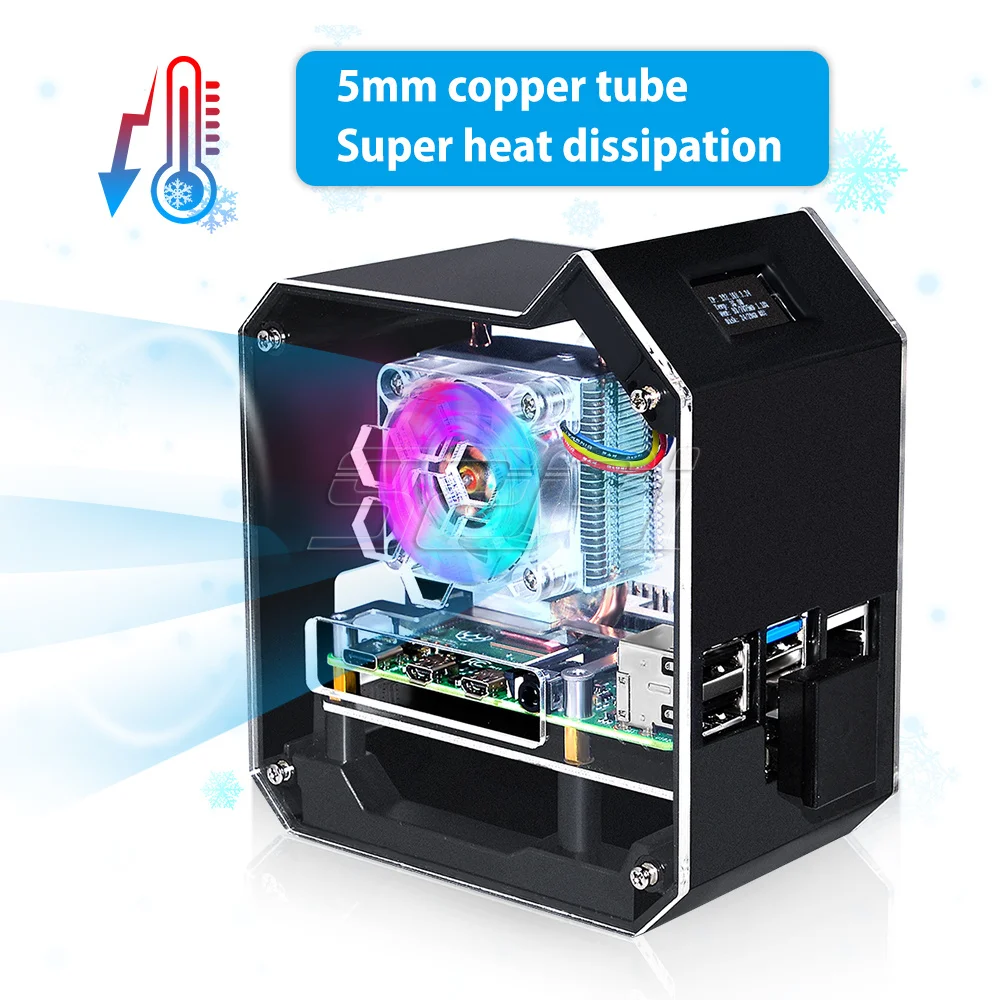

Ice Tower Heat dissipation system
RGB Programmable Fan light and mood light (WS281X)

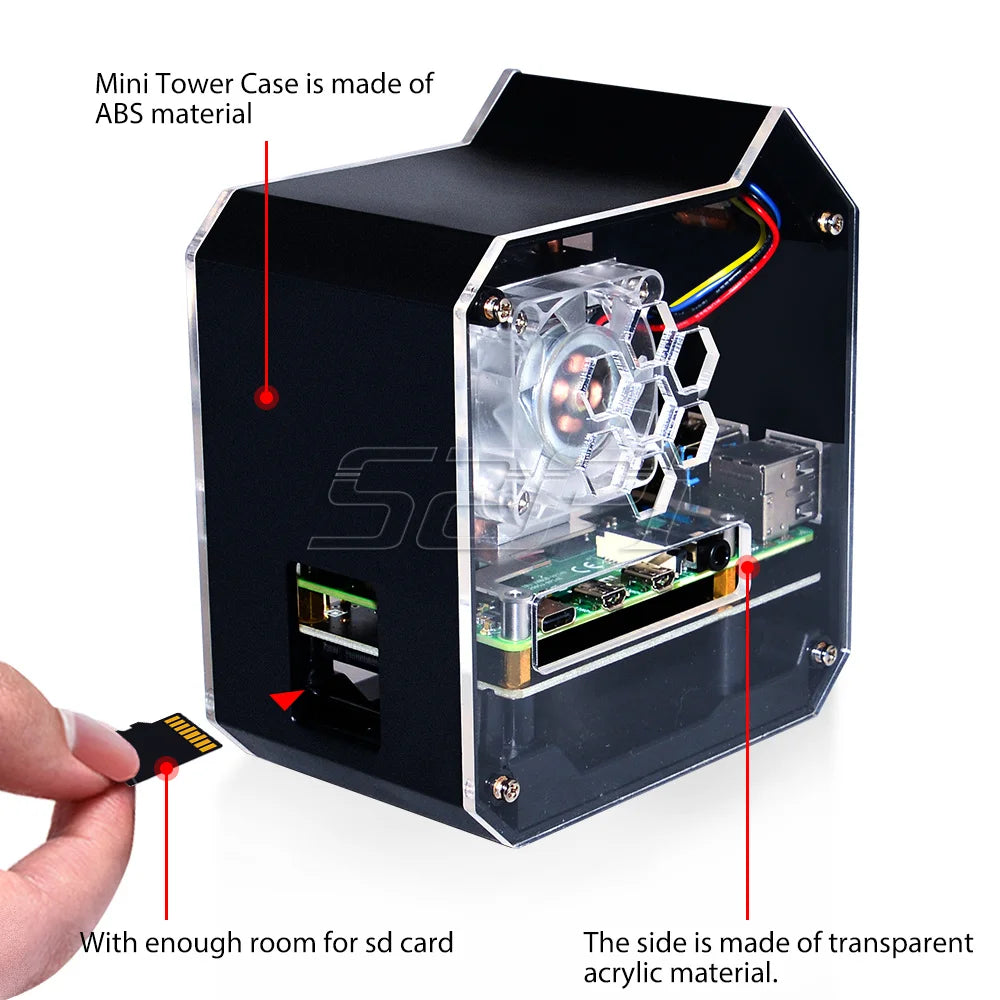

Acrylic Transparent Side Pannel

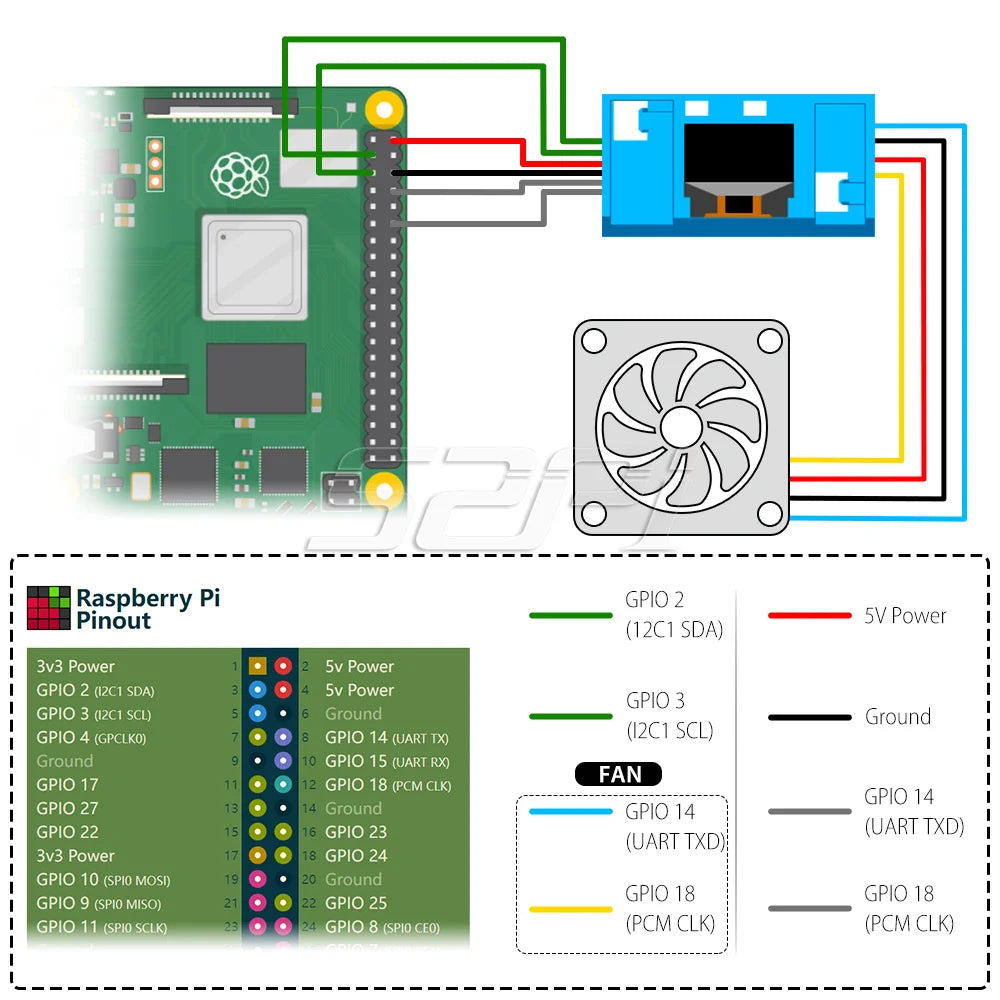

Foolproof power connector for OLED screen and Fan
Supports taking power from the GPIO pin of the Raspberry Pi through the Pogopin to supply power to the disk adapter board (5V@3A)
Transfer Speed is up to 272MB/s
ABS material High-precision mold making

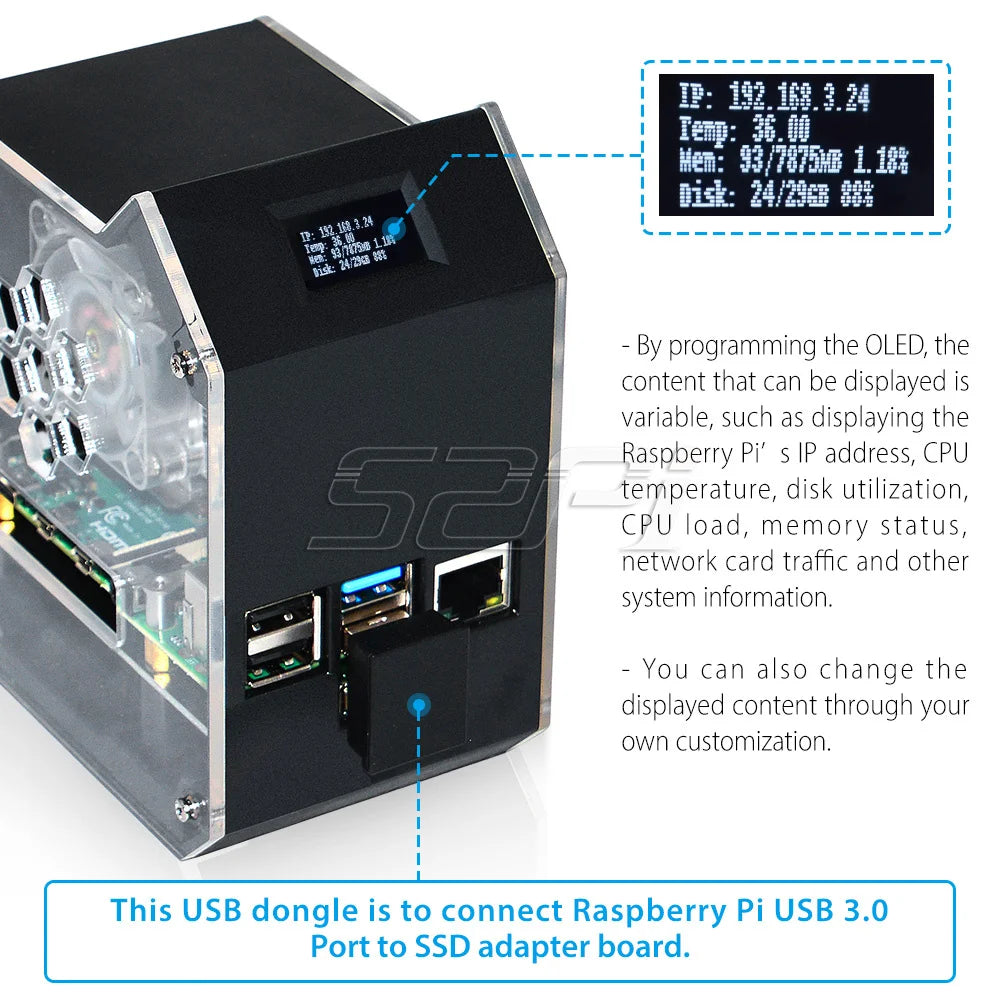

0.96 inch OLED display, 128x64pixels, default I2C address: 0x3C
Recommended 5V/3A power supply
